MX25L51245GXDI-10G - Macronix

Description: NOR Flash Serial (SPI, Dual SPI, Quad SPI) 3V/3.3V 512M-bit 512M/256M/128M x 1/2-bit/4-bit 8ns 24-Pin CSP

Download MX25L51245GXDI-10G Model
Schematic

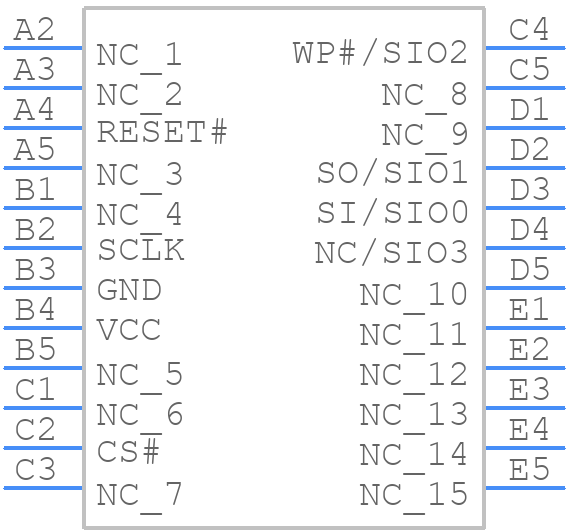

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX25L51245GXDI-10G - Macronix PCB footprint - BGA - BGA - 24-Ball BGA (5x5 ball array)
click to zoom
3D Models
MX25L51245GXDI-10G - Macronix  - 3D model - BGA - 24-Ball BGA (5x5 ball array)
click to zoom

MX25L51245GXDI-10G Details

  • Manufacturer Part Number:

    MX25L51245GXDI-10G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    6.25

  • Additional Feature:

    CAN BE ORGNISED AS 512 MBIT X 1

  • Alternate Memory Width:

    2

  • Clock Frequency-Max (fCLK):

    104 MHz

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PBGA-B24

  • Length:

    8 mm

  • Memory Density:

    536870912 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Words:

    67108864 words

  • Number of Words Code:

    64000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    2.7 V

  • Seated Height-Max:

    1.2 mm

  • Standby Current-Max:

    0.00002 A

  • Supply Current-Max:

    0.03 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Type:

    NOR TYPE

  • Width:

    6 mm

  • Write Protection:

    HARDWARE/SOFTWARE

MX25L51245GXDI-10G Frequently Asked Questions (FAQs)

  • The MX25L51245GXDI-10G has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.
  • The HOLD# signal should be kept low during read and write operations. If the HOLD# signal is asserted high, the device will enter a 'hold' state, and all operations will be suspended until the HOLD# signal is de-asserted.
  • The recommended power-up sequence is to apply VCC first, followed by VPP (if used), and then the clock signal. This ensures that the device is properly initialized and ready for operation.
  • The WP# signal should be tied high to enable write operations. If the WP# signal is tied low, the device will be in a write-protected state, and all write operations will be ignored.
  • The maximum operating frequency for the MX25L51245GXDI-10G is 104 MHz, but the actual frequency may vary depending on the system design and operating conditions.
