MX25L51245GZ2I-08G - Macronix

Description: NOR Flash Serial (SPI, Dual SPI, Quad SPI) 3V/3.3V 512M-bit 512M/256M/128M x 1/2-bit/4-bit 8ns 8-Pin WSON EP

Download MX25L51245GZ2I-08G Model

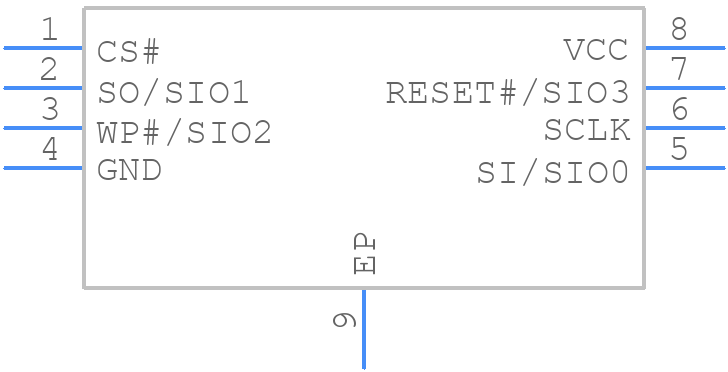

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX25L51245GZ2I-08G - Macronix PCB footprint - Small Outline No-lead - Small Outline No-lead - MX25L51245GZ2I-10G
click to zoom
3D Models
MX25L51245GZ2I-08G - Macronix  - 3D model - Small Outline No-lead - MX25L51245GZ2I-10G
click to zoom

MX25L51245GZ2I-08G Details

  • Manufacturer Part Number:

    MX25L51245GZ2I-08G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    3

  • Additional Feature:

    ALSO CONFIGURED WITH 1-BIT WIDTH

  • Alternate Memory Width:

    2

  • Clock Frequency-Max (fCLK):

    166 MHz

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    8 mm

  • Memory Density:

    536870912 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    67108864 words

  • Number of Words Code:

    64000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    0.8 mm

  • Standby Current-Max:

    0.00002 A

  • Supply Current-Max:

    0.03 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    6 mm

  • Write Protection:

    HARDWARE/SOFTWARE

MX25L51245GZ2I-08G Frequently Asked Questions (FAQs)

  • The MX25L51245GZ2I-08G supports up to 100,000 erase cycles.
  • The MX25L51245GZ2I-08G uses a page-based programming and erasure mechanism, where each page is 256 bytes. The device can program and erase pages independently.
  • The WP# (Write Protect) pin is used to prevent accidental writes to the device. When the WP# pin is low, the device is in write-protect mode, and any write operations are ignored.
  • The MX25L51245GZ2I-08G has a built-in power-on reset circuit that ensures the device is in a known state after power-up. The device automatically resets to a default state after power-on.
  • The recommended operating voltage range for the MX25L51245GZ2I-08G is 2.7V to 3.6V.
