MX25L51245GZ2I-10G - Macronix

Description: NOR Flash Serial (SPI, Dual SPI, Quad SPI) 3V/3.3V 512M-bit 512M/256M/128M x 1/2-bit/4-bit 8ns 8-Pin WSON EP

Download MX25L51245GZ2I-10G Model

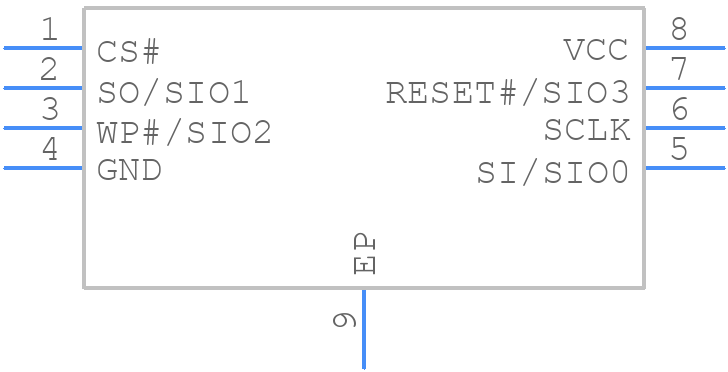

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX25L51245GZ2I-10G - Macronix PCB footprint - Small Outline No-lead - Small Outline No-lead - MX25L51245GZ2I-10G
click to zoom
3D Models
MX25L51245GZ2I-10G - Macronix  - 3D model - Small Outline No-lead - MX25L51245GZ2I-10G
click to zoom

MX25L51245GZ2I-10G Details

  • Manufacturer Part Number:

    MX25L51245GZ2I-10G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    6.3

  • Additional Feature:

    CAN BE ORGNISED AS 512 MBIT X 1

  • Alternate Memory Width:

    2

  • Clock Frequency-Max (fCLK):

    104 MHz

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    8 mm

  • Memory Density:

    536870912 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    67108864 words

  • Number of Words Code:

    64000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    2.7 V

  • Seated Height-Max:

    0.8 mm

  • Standby Current-Max:

    0.00002 A

  • Supply Current-Max:

    0.03 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    6 mm

  • Write Protection:

    HARDWARE/SOFTWARE

MX25L51245GZ2I-10G Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the MX25L51245GZ2I-10G is 104 MHz.
  • Yes, the MX25L51245GZ2I-10G can operate at a voltage range of 2.7V to 3.6V, but it is not recommended for 1.8V systems. For 1.8V systems, consider using the MX25L51245GZ2I-12G or MX25L51245GXDI-12G instead.
  • The HOLD# pin is used to pause the current operation and the WP# pin is used to enable or disable the write protection. These pins should be connected to VCC or GND depending on the desired functionality.
  • The deep power-down mode is used to reduce the power consumption of the device to a minimum. In this mode, the device is in a low-power state and all commands are ignored.
  • To perform a sector erase, send the Sector Erase command (0x20) followed by the address of the sector to be erased. The device will then erase the entire sector.
