MX25L6439EXDQ-12G(TRAY) - Macronix

Description: 64M-BIT [x 1 / x 2] CMOS SERIAL FLASH

Download MX25L6439EXDQ-12G(TRAY) Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MX25L6439EXDQ-12G(TRAY) model

Email notifications will be applied after download.

Send part feedback

Symbol

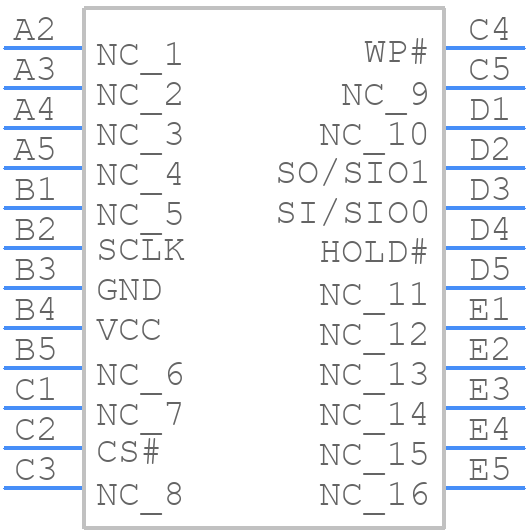

MX25L6439EXDQ-12G(TRAY) - Macronix - PCB symbol

PCB Footprints

MX25L6439EXDQ-12G(TRAY) - Macronix PCB footprint - BGA - BGA - 24-ball TFBGA (6mmx8mm, 5x5 ball array)

3D Models

MX25L6439EXDQ-12G(TRAY) - Macronix - 3D model - BGA - 24-ball TFBGA (6mmx8mm, 5x5 ball array)

Datasheet Download Datasheet
Stock & Prices Price & Stock for MX25L6439EXDQ-12G(TRAY)
Part Number MX25L6439EXDQ-12G(TRAY)
Manufacturer Macronix
Pin Count 24
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - 24-ball TFBGA (6mmx8mm, 5x5 ball array)
Released Date Nov 29, 2023
Last Modified Date Nov 29, 2023 3:05 PM UTC
Pinout / Pin List Click Here (Member Only)

MX25L6439EXDQ-12G(TRAY) Details

Manufacturer Part Number:
MX25L6439EXDQ-12G(TRAY)
Manufacturer:
Macronix International Co Ltd

Trust Checks

Community Provided

System Verified

Community Approved

MX25L6439EXDQ-12G(TRAY) Overview

Use the download button to access the MX25L6439EXDQ-12G(TRAY) schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MX25L, or try a keyword search, such as Flash Memories
