MX25L6473FM2I-08G - Macronix

Description: NOR Flash Serial 3V/3.3V 64M-bit 64M/32M/16M x 1/2-bit/4-bit 8ns 8-Pin SOP

Download MX25L6473FM2I-08G Model

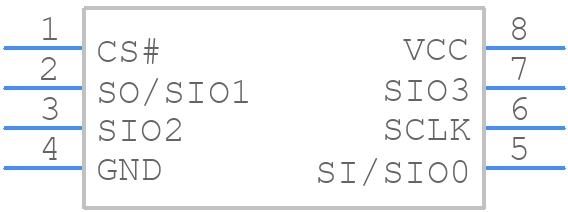

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX25L6473FM2I-08G - Macronix PCB footprint - Small Outline Packages - Small Outline Packages - 8-SOP (200MIL)
click to zoom
3D Models
MX25L6473FM2I-08G - Macronix  - 3D model - Small Outline Packages - 8-SOP (200MIL)
click to zoom

MX25L6473FM2I-08G Details

  • Manufacturer Part Number:

    MX25L6473FM2I-08G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    5

  • Additional Feature:

    ALSO IT CAN BE CONFIGURED AS 64M X 1 BIT

  • Alternate Memory Width:

    2

  • Clock Frequency-Max (fCLK):

    133 MHz

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    5.28 mm

  • Memory Density:

    67108864 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    8388608 words

  • Number of Words Code:

    8000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    8MX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    2.16 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.65 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5.23 mm

MX25L6473FM2I-08G Frequently Asked Questions (FAQs)

  • The MX25L6473FM2I-08G has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.
  • The HOLD# signal should be kept low during read and write operations to ensure that the device is not interrupted. If the HOLD# signal is asserted high, the device will enter a low-power state and all operations will be suspended.
  • The recommended power-up sequence is to apply VCC first, followed by VPP (if used), and then the clock signal. This ensures that the device is properly initialized and ready for operation.
  • The WP# signal should be tied low to enable write operations. If WP# is tied high, the device will be in a read-only state and write operations will be blocked.
  • The maximum operating frequency for the MX25L6473FM2I-08G is 133 MHz, but the actual frequency may vary depending on the system design and operating conditions.
