MX25LM25645GXDI00 - Macronix

Description: NOR Flash Serial-SPI 3V/3.3V 256M-bit 256M/32M x 1/8-bit 8ns 24-Pin BGA

Download MX25LM25645GXDI00 Model
Schematic

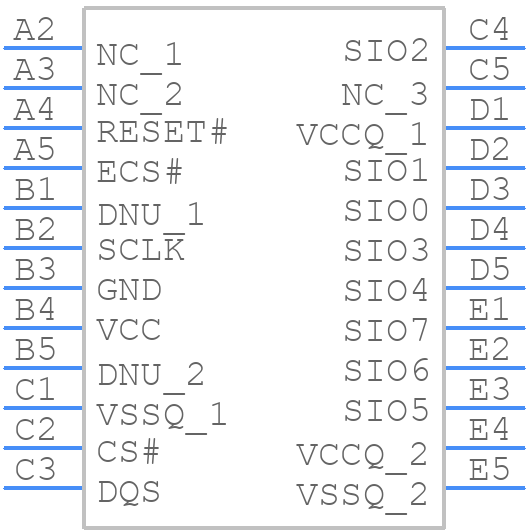

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX25LM25645GXDI00 - Macronix PCB footprint - BGA - BGA - 24-Ball BGA (5x5 ball array
click to zoom
3D Models
MX25LM25645GXDI00 - Macronix  - 3D model - BGA - 24-Ball BGA (5x5 ball array
click to zoom

MX25LM25645GXDI00 Details

  • Manufacturer Part Number:

    MX25LM25645GXDI00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Date Of Intro:

    2020-03-13

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    7

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PBGA-B24

  • Length:

    8 mm

  • Memory Density:

    268435456 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Words:

    33554432 words

  • Number of Words Code:

    32000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TBGA

  • Package Equivalence Code:

    BGA24,5X5,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    1.2 mm

  • Serial Bus Type:

    OSPI

  • Standby Current-Max:

    0.00008 A

  • Supply Current-Max:

    0.06 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Type:

    NOR TYPE

  • Width:

    6 mm

  • Write Protection:

    SOFTWARE

MX25LM25645GXDI00 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the MX25LM25645GXDI00 is 104 MHz.
  • The MX25LM25645GXDI00 can endure up to 100,000 program/erase cycles before it starts to degrade.
  • The typical programming time for the MX25LM25645GXDI00 is 1.5 ms per 256-byte page.
  • No, the MX25LM25645GXDI00 does not support simultaneous read and write operations. It is a serial flash memory chip that can only perform one operation at a time.
  • The minimum voltage required to program the MX25LM25645GXDI00 is 2.7V.
