MX25LM51245GXDI00 - Macronix

Description: S-NOR 512M

Download MX25LM51245GXDI00 Model

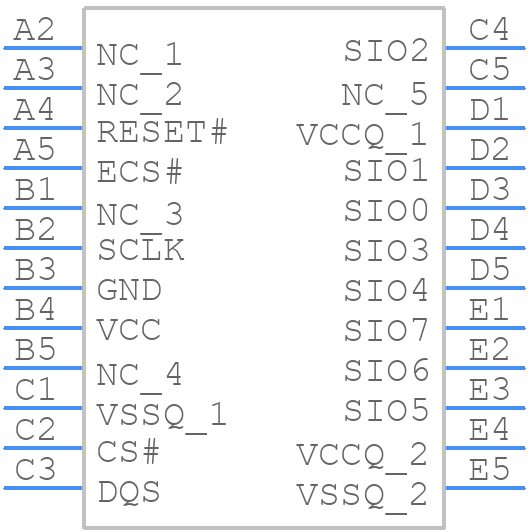

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX25LM51245GXDI00 - Macronix PCB footprint - BGA - BGA - MX25LM51245GXDI00
click to zoom
3D Models
MX25LM51245GXDI00 - Macronix  - 3D model - BGA - MX25LM51245GXDI00
click to zoom

MX25LM51245GXDI00 Details

  • Manufacturer Part Number:

    MX25LM51245GXDI00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-24

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    5

  • Alternate Memory Width:

    1

  • Clock Frequency-Max (fCLK):

    133 MHz

  • JESD-30 Code:

    R-PBGA-B24

  • JESD-609 Code:

    e1

  • Length:

    8 mm

  • Memory Density:

    536870912 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Words:

    67108864 words

  • Number of Words Code:

    64000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64MX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    6 mm

MX25LM51245GXDI00 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the MX25LM51245GXDI00 is 133 MHz.
  • The MX25LM51245GXDI00 can endure up to 100,000 program/erase cycles before it starts to degrade.
  • The typical programming time for the MX25LM51245GXDI00 is 1.5 ms per 256-byte block.
  • No, the MX25LM51245GXDI00 does not support simultaneous read and write operations. It is a serial flash memory chip that can only perform one operation at a time.
  • The minimum voltage required to program the MX25LM51245GXDI00 is 2.7V.
