The recommended operating voltage range for the MX25R1635FM1IL0 is 2.7V to 3.6V.
The hold signal (HOLD#) should be kept low during read and write operations. When HOLD# is high, the device is in a 'hold' state, and all inputs are ignored.
The WP# (Write Protect) pin is used to prevent accidental writes to the device. When WP# is low, the device is in write-protect mode, and all write operations are inhibited.
To perform a sector erase, send the sector erase command (0x20) followed by the sector address. The device will then erase the entire sector.
The MX25R1635FM1IL0 has a maximum of 100,000 erase cycles per sector.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MX25R1635FM1IL0 Overview

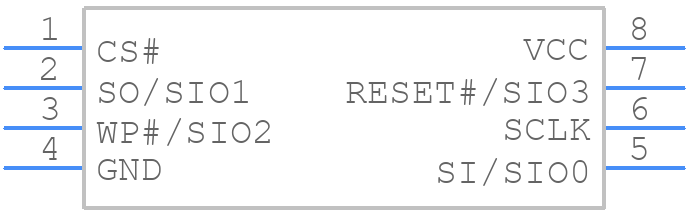

Use the download button to access the MX25R1635FM1IL0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MX25R,
or try a keyword search, such as Flash Memories
