MX25R1635FM2IL0 - Macronix

Description: NOR Flash Serial (SPI, Dual SPI, Quad SPI) 1.8V/3.3V 16M-bit 16M/8M/4M x 1/2-bit/4-bit 12ns 8-Pin SOP

Download MX25R1635FM2IL0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

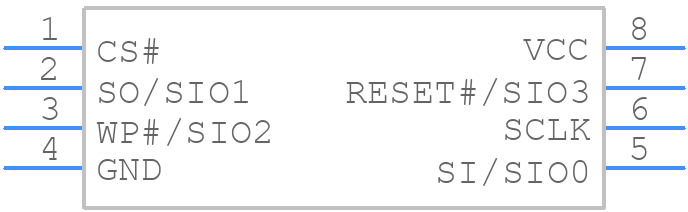

PCB Footprints
MX25R1635FM2IL0 - Macronix PCB footprint - Small Outline Packages - Small Outline Packages - 8-SOP (200MIL)
click to zoom
3D Models
MX25R1635FM2IL0 - Macronix  - 3D model - Small Outline Packages - 8-SOP (200MIL)
click to zoom

MX25R1635FM2IL0 Details

  • Manufacturer Part Number:

    MX25R1635FM2IL0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    IT IS ALSO CONFIGURED AS 16M X 1

  • Alternate Memory Width:

    2

  • Clock Frequency-Max (fCLK):

    80 MHz

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    5.28 mm

  • Memory Density:

    16777216 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    4194304 words

  • Number of Words Code:

    4000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    4MX4

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    2.16 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    5.23 mm

MX25R1635FM2IL0 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MX25R1635FM2IL0 is 2.7V to 3.6V.
  • The hold signal (HOLD#) should be kept low during read and write operations. If the hold signal is asserted (driven high), the device will ignore any incoming commands and will not respond to any requests.
  • The WP# (Write Protect) pin is used to prevent accidental writes to the device. When the WP# pin is driven low, the device is write-protected, and any write operations will be ignored.
  • The MX25R1635FM2IL0 has a density of 16Mb (2,097,152 bytes) and is organized as 4,096 pages of 528 bytes each.
  • The MX25R1635FM2IL0 supports up to 100,000 erase cycles.
