MX25R1635FZNIH0 - Macronix

Description: NOR Flash Serial (SPI, Dual SPI, Quad SPI) 1.8V/3.3V 16M-bit 16M/8M/4M x 1/2-bit/4-bit 12ns 8-Pin WSON EP

Download MX25R1635FZNIH0 Model

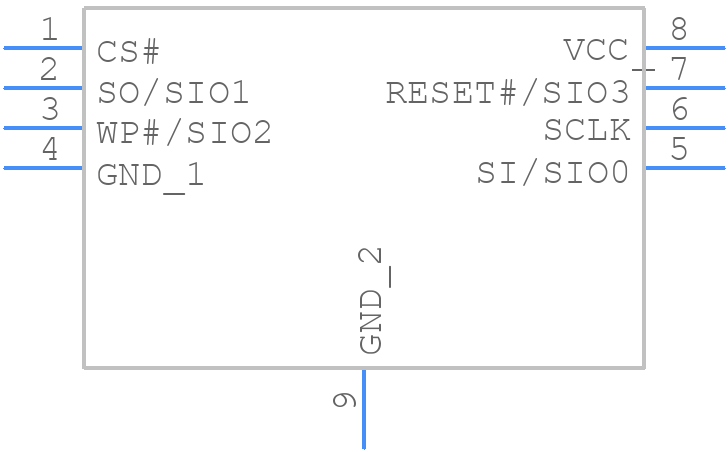

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX25R1635FZNIH0 - Macronix PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-land WSON (6x5mm)
click to zoom
3D Models
MX25R1635FZNIH0 - Macronix  - 3D model - Small Outline No-lead - 8-land WSON (6x5mm)
click to zoom

MX25R1635FZNIH0 Details

  • Manufacturer Part Number:

    MX25R1635FZNIH0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WSON-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    5.3

  • Additional Feature:

    IT IS ALSO CONFIGURED AS 16M X 1

  • Alternate Memory Width:

    2

  • Clock Frequency-Max (fCLK):

    80 MHz

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    6 mm

  • Memory Density:

    16777216 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    4194304 words

  • Number of Words Code:

    4000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    4MX4

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    5 mm

MX25R1635FZNIH0 Frequently Asked Questions (FAQs)

  • The MX25R1635FZNIH0 has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.
  • The HOLD# signal should be kept low during read and write operations to ensure proper communication with the device. If the HOLD# signal is asserted high, the device will ignore any incoming commands.
  • The recommended power-up sequence is to apply VCC first, followed by VPP (if used), and then the clock signal. This ensures proper device initialization and prevents latch-up conditions.
  • Yes, the MX25R1635FZNIH0 is compatible with 1.8V power supplies. However, the device's performance and reliability may be affected at lower voltages, so ensure that the system design takes this into account.
  • The WP# signal should be asserted low during firmware updates to prevent accidental writes to the device. This ensures that the device remains in a protected state until the update is complete.
