MX25R2035FZUIL0 - Macronix

Description: NOR Flash Serial-SPI 1.8V/2.5V/3.3V 2M-bit 2M/1M/512K x 1/2-bit/4-bit 8-Pin USON EP

Download MX25R2035FZUIL0 Model
Schematic

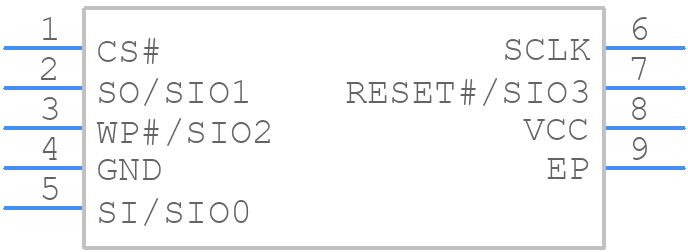

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX25R2035FZUIL0 - Macronix PCB footprint - Other - Other - MX25R2035FZUIL0-1
click to zoom
3D Models
MX25R2035FZUIL0 - Macronix  - 3D model - Other - MX25R2035FZUIL0-1
click to zoom

MX25R2035FZUIL0 Details

  • Manufacturer Part Number:

    MX25R2035FZUIL0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    USON-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    4.9

  • Additional Feature:

    IT IS ALSO CONFIGURED AS 2M X 1

  • Alternate Memory Width:

    2

  • Clock Frequency-Max (fCLK):

    80 MHz

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    3 mm

  • Memory Density:

    2097152 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    524288 words

  • Number of Words Code:

    512000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    512KX4

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    2 mm

MX25R2035FZUIL0 Frequently Asked Questions (FAQs)

  • The MX25R2035FZUIL0 has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on usage and environmental conditions.
  • The HOLD# signal should be kept low during read and write operations to ensure proper communication with the device. If the HOLD# signal is asserted high, the device will ignore any incoming commands.
  • The recommended power-up sequence is to apply VCC first, followed by VPP (if used), and then the clock signal. This ensures proper device initialization and prevents latch-up conditions.
  • The WP# signal should be tied low to enable write operations. If WP# is tied high, the device will be in read-only mode, and write operations will be blocked.
  • The maximum operating frequency for the MX25R2035FZUIL0 is 104 MHz, but it can be operated at lower frequencies depending on the application requirements.
