MX25R3235FM1IL0 - Macronix

Description: MX25R3235FM1IL0, Serial NOR Flash Memory, 16M x 2 bit, 32M x 1 bit, 8M x 4 bit 32Mbit, 1.65 → 2 V, 8, 8-Pin, SOP

Download MX25R3235FM1IL0 Model
Schematic

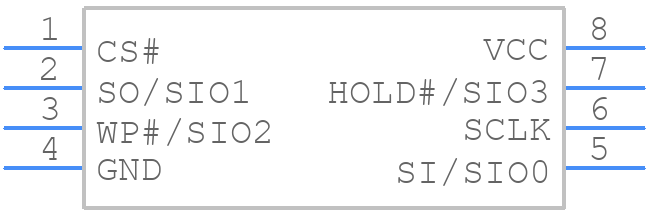

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX25R3235FM1IL0 - Macronix PCB footprint - Small Outline Packages - Small Outline Packages - 8-PIN SOP (150mil)
click to zoom
3D Models
MX25R3235FM1IL0 - Macronix  - 3D model - Small Outline Packages - 8-PIN SOP (150mil)
click to zoom

MX25R3235FM1IL0 Details

  • Manufacturer Part Number:

    MX25R3235FM1IL0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    5.5

  • Alternate Memory Width:

    2

  • Clock Frequency-Max (fCLK):

    80 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Memory Density:

    33554432 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    4194304 words

  • Number of Words Code:

    4000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    4MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    1.75 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.000024 A

  • Supply Current-Max:

    0.006 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    3.9 mm

  • Write Protection:

    HARDWARE/SOFTWARE

MX25R3235FM1IL0 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MX25R3235FM1IL0 is 2.7V to 3.6V.
  • The HOLD# pin should be pulled high during power-up and power-down sequences to prevent unwanted writes or erases.
  • The WP# pin is a write-protect pin that prevents writes to the status register and the memory array when pulled low. It can be used to protect the device from accidental writes or erases.
  • The optimal clock frequency depends on the specific application and system requirements. The MX25R3235FM1IL0 supports clock frequencies up to 104 MHz, but the actual frequency used should be determined based on the system's timing requirements and noise tolerance.
  • The MX25R3235FM1IL0 is a 3V, 32Mb serial flash memory device with a x8/x16 bus interface, whereas other Macronix devices may have different voltage ranges, densities, or interface configurations.
