MX25R4035FM1IL0 - Macronix

Description: NOR Flash Serial (SPI, Dual SPI, Quad SPI) 1.8V/2.5V/3.3V 4M-bit 4M/2M/1M x 1/2-bit/4-bit 12ns 8-Pin SOP

Download MX25R4035FM1IL0 Model

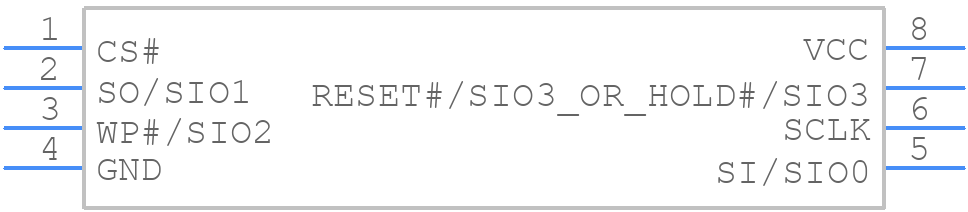

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX25R4035FM1IL0 - Macronix PCB footprint - Small Outline Packages - Small Outline Packages - 8-PIN SOP (150mil)
click to zoom
3D Models
MX25R4035FM1IL0 - Macronix  - 3D model - Small Outline Packages - 8-PIN SOP (150mil)
click to zoom

MX25R4035FM1IL0 Details

  • Manufacturer Part Number:

    MX25R4035FM1IL0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    4

  • Additional Feature:

    IT IS ALSO CONFIGURED AS 4M X 1

  • Alternate Memory Width:

    2

  • Clock Frequency-Max (fCLK):

    104 MHz

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Memory Density:

    4194304 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    1048576 words

  • Number of Words Code:

    1000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1MX4

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

MX25R4035FM1IL0 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MX25R4035FM1IL0 is 2.7V to 3.6V.
  • The HOLD# pin should be pulled high during power-up and power-down sequences to prevent unwanted writes or erases.
  • The WP# pin is a write-protect pin that prevents accidental writes or erases. To use it, tie WP# to VCC to enable write protection or to GND to disable it.
  • The optimal clock frequency depends on the specific application requirements. The MX25R4035FM1IL0 supports clock frequencies up to 104 MHz, but you may need to adjust the frequency based on your system's timing constraints and performance requirements.
  • The MX25R4035FM1IL0 supports up to 100,000 erase cycles per sector.
