The recommended operating voltage range for the MX25R4035FZUIL0 is 2.7V to 3.6V.
The HOLD# pin should be pulled high during power-up and power-down sequences to prevent unwanted writes or erases.
The WP# (Write Protect) pin is used to prevent accidental writes or erases. When WP# is low, the device is in write-protect mode, and when WP# is high, the device is in normal operation mode.
The optimal clock frequency depends on the specific application requirements. The MX25R4035FZUIL0 supports clock frequencies up to 104 MHz, but the actual frequency used should be determined based on the system's timing requirements and noise tolerance.
The MX25R4035FZUIL0 supports up to 100,000 erase cycles per sector.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MX25R4035FZUIL0 Overview

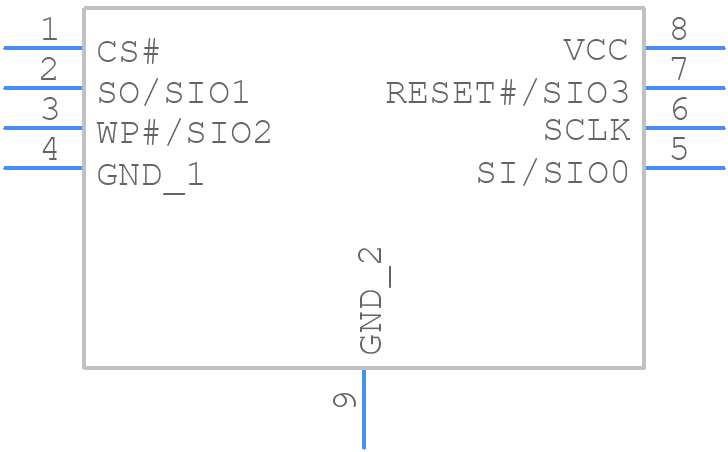

Use the download button to access the MX25R4035FZUIL0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MX25R,
or try a keyword search, such as Flash Memories
