Part Image

MX25R512FM1IL0 - Macronix

Description: IC FLASH 512KBIT 104MHZ 8SOIC

Download MX25R512FM1IL0 Model

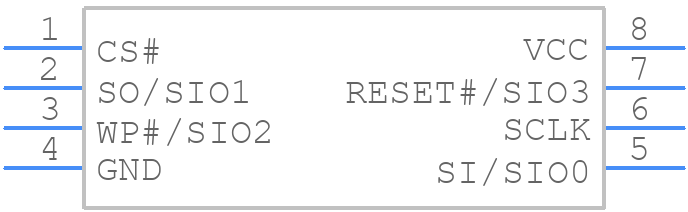

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX25R512FM1IL0 - Macronix PCB footprint - Small Outline Packages - Small Outline Packages - 8-PIN SOP (150mil)
click to zoom
3D Models
MX25R512FM1IL0 - Macronix  - 3D model - Small Outline Packages - 8-PIN SOP (150mil)
click to zoom

MX25R512FM1IL0 Details

  • Manufacturer Part Number:

    MX25R512FM1IL0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    4

  • Additional Feature:

    ALSO IT CAN BE CONFIGURED AS 512K X 1 BIT

  • Alternate Memory Width:

    2

  • Clock Frequency-Max (fCLK):

    33 MHz

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Memory Density:

    524288 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    4

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    131072 words

  • Number of Words Code:

    128000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128KX4

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

MX25R512FM1IL0 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the MX25R512FM1IL0 is 104 MHz.
  • The MX25R512FM1IL0 can endure up to 100,000 program/erase cycles before it starts to degrade.
  • The MX25R512FM1IL0 has a data retention period of at least 20 years at a temperature of 25°C.
  • Yes, the MX25R512FM1IL0 can operate in industrial temperature ranges from -40°C to 85°C.
  • The typical standby current of the MX25R512FM1IL0 is 10 μA.
