MX25R6435FM2IL0 - Macronix

Description: MX25R6435FM2IL0, Serial NOR Flash Memory, 16 x 4 bit, 32M x 2 bit, 64M x 1 bit 64Mbit, 1.7 → 3.6 V, 16, 8-Pin

Download MX25R6435FM2IL0 Model

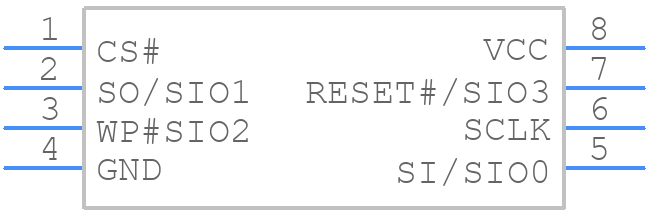

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX25R6435FM2IL0 - Macronix PCB footprint - Small Outline Packages - Small Outline Packages - 8-SOP (200MIL)
click to zoom
3D Models
MX25R6435FM2IL0 - Macronix  - 3D model - Small Outline Packages - 8-SOP (200MIL)
click to zoom

MX25R6435FM2IL0 Details

  • Manufacturer Part Number:

    MX25R6435FM2IL0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    9

  • Clock Frequency-Max (fCLK):

    33 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    5.28 mm

  • Memory Density:

    67108864 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    8388608 words

  • Number of Words Code:

    8000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    8MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    2.16 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    3.5e-7 A

  • Supply Current-Max:

    0.01 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    5.23 mm

  • Write Protection:

    HARDWARE/SOFTWARE

MX25R6435FM2IL0 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the MX25R6435FM2IL0 is 104 MHz.
  • The HOLD# signal should be asserted low to pause the current operation and de-asserted high to resume the operation.
  • The WP# pin is used to prevent accidental writes to the device. When WP# is low, the device is write-protected.
  • To perform a sector erase operation, send the Sector Erase command (0x20) followed by the address of the sector to be erased.
  • The main difference is the operating voltage range. The MX25R6435FM2IL0 operates from 2.7V to 3.6V, while the MX25R6435FM2IL1 operates from 1.65V to 3.6V.
