MX25R8035FM2IH0 - Macronix

Description: IC FLASH 8MBIT 104MHZ 8SOIC

Download MX25R8035FM2IH0 Model

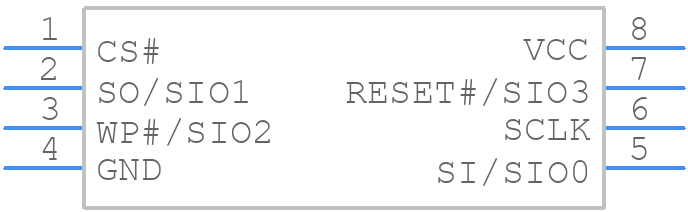

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX25R8035FM2IH0 - Macronix PCB footprint - Small Outline Packages - Small Outline Packages - 8-SOP (200MIL)
click to zoom
3D Models
MX25R8035FM2IH0 - Macronix  - 3D model - Small Outline Packages - 8-SOP (200MIL)
click to zoom

MX25R8035FM2IH0 Details

  • Manufacturer Part Number:

    MX25R8035FM2IH0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    IT IS ALSO CONFIGURED AS 8M X 1

  • Alternate Memory Width:

    2

  • Clock Frequency-Max (fCLK):

    104 MHz

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    5.28 mm

  • Memory Density:

    8388608 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    2097152 words

  • Number of Words Code:

    2000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    2MX4

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    2.16 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    5.23 mm

MX25R8035FM2IH0 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the MX25R8035FM2IH0 is 104 MHz.
  • The HOLD# pin is used to pause the current operation, and the WP# pin is used to enable or disable the write protection. Both pins should be connected to VCC or GND as required by the application.
  • The Deep Power-Down mode is used to reduce power consumption when the device is not in use. In this mode, the device consumes very low power, but it takes longer to wake up.
  • To perform a sector erase, send the Sector Erase command (0x20) followed by the address of the sector to be erased. The device will then erase the entire sector.
  • The main difference is the operating voltage range. The MX25R8035FM2IH0 operates from 2.7V to 3.6V, while the MX25R8035FM2IH1 operates from 1.65V to 3.6V.
