MX25R8035FM2IL0 - Macronix

Description: IC FLASH 8M SPI 33MHZ 8SOP

Download MX25R8035FM2IL0 Model

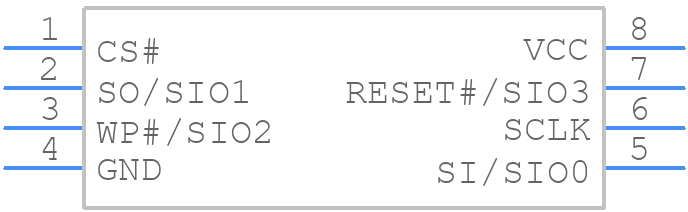

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX25R8035FM2IL0 - Macronix PCB footprint - Small Outline Packages - Small Outline Packages - 8-SOP (200MIL)
click to zoom
3D Models
MX25R8035FM2IL0 - Macronix  - 3D model - Small Outline Packages - 8-SOP (200MIL)
click to zoom

MX25R8035FM2IL0 Details

  • Manufacturer Part Number:

    MX25R8035FM2IL0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    5

  • Additional Feature:

    IT IS ALSO CONFIGURED AS 8M X 1

  • Alternate Memory Width:

    2

  • Clock Frequency-Max (fCLK):

    104 MHz

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    5.28 mm

  • Memory Density:

    8388608 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    2097152 words

  • Number of Words Code:

    2000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    2MX4

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    2.16 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    5.23 mm

MX25R8035FM2IL0 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MX25R8035FM2IL0 is 2.7V to 3.6V.
  • The HOLD# pin should be pulled high during power-up and power-down sequences to prevent unwanted writes or erases.
  • The WP# pin is a write-protect pin that prevents writes to the status register and the memory array when pulled low. It can be used to protect the device from accidental writes or erases.
  • The optimal clock frequency depends on the specific application and system requirements. The MX25R8035FM2IL0 supports clock frequencies up to 104 MHz, but the actual frequency used should be determined based on the system's timing requirements and noise tolerance.
  • The MX25R8035FM2IL0 is a 3V, 8-pin, 32M-bit serial flash memory device with a unique set of features, such as a fast clock frequency and low power consumption. It is designed for use in a variety of applications, including IoT devices, industrial control systems, and automotive systems.
