MX25R8035FZUIH1 - Macronix

Description: NOR Flash Serial 1.8V/3.3V 8M-bit 8M/4M/2M x 1/2-bit/4-bit 12ns 8-Pin USON EP

Download MX25R8035FZUIH1 Model

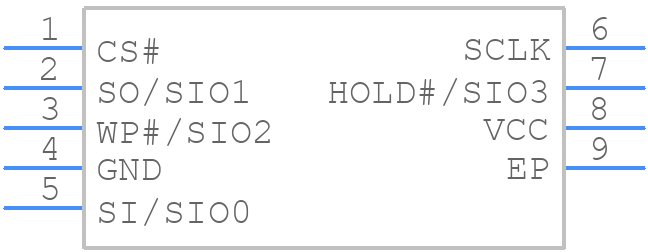

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX25R8035FZUIH1 - Macronix PCB footprint - Other - Other - 8 Land USON (2x3mm)
click to zoom
3D Models
MX25R8035FZUIH1 - Macronix  - 3D model - Other - 8 Land USON (2x3mm)
click to zoom

MX25R8035FZUIH1 Details

  • Manufacturer Part Number:

    MX25R8035FZUIH1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    USON-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    6

  • Additional Feature:

    IT IS ALSO CONFIGURED AS 8M X 1

  • Alternate Memory Width:

    2

  • Clock Frequency-Max (fCLK):

    104 MHz

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    3 mm

  • Memory Density:

    8388608 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    2097152 words

  • Number of Words Code:

    2000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    2MX4

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    2 mm

MX25R8035FZUIH1 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the MX25R8035FZUIH1 is 104 MHz.
  • The HOLD# pin should be pulled high during read and write operations to prevent the device from entering the hold state.
  • The WP# pin is used to enable or disable the write protection feature of the device. When WP# is low, the device is in write-protected mode.
  • To perform a sector erase operation, send the sector erase command (0x20) followed by the address of the sector to be erased.
  • The recommended power-up sequence is to apply VCC first, followed by VPP, and then the clock signal.
