MX25U12835FM2I-10G - Macronix

Description: NOR Flash Serial (SPI, Dual SPI, Quad SPI) 1.8V 128M-bit 128M/64M/32M x 1/2-bit/4-bit 7ns 8-Pin SOP

Download MX25U12835FM2I-10G Model

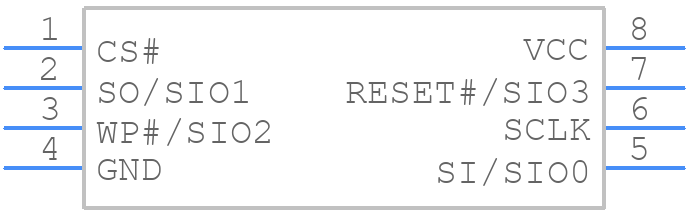

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX25U12835FM2I-10G - Macronix PCB footprint - Small Outline Packages - Small Outline Packages - SOP-8L
click to zoom
3D Models
MX25U12835FM2I-10G - Macronix  - 3D model - Small Outline Packages - SOP-8L
click to zoom

MX25U12835FM2I-10G Details

  • Manufacturer Part Number:

    MX25U12835FM2I-10G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    6

  • Additional Feature:

    IT CAN ALSO BE CONFIGURABLE AS 128MX1

  • Alternate Memory Width:

    2

  • Clock Frequency-Max (fCLK):

    104 MHz

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    5.28 mm

  • Memory Density:

    134217728 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    33554432 words

  • Number of Words Code:

    32000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32MX4

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    2.16 mm

  • Supply Voltage-Max (Vsup):

    2 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    5.23 mm

MX25U12835FM2I-10G Frequently Asked Questions (FAQs)

  • The MX25U12835FM2I-10G supports up to 100,000 erase cycles.
  • The MX25U12835FM2I-10G uses a page-based programming and erasure mechanism, where each page is 256 bytes. The device can program and erase pages individually.
  • The WP# (Write Protect) pin is used to prevent accidental writes to the device. When the WP# pin is low, the device is in write-protect mode, and any write operations are ignored.
  • The MX25U12835FM2I-10G has a built-in power-on reset circuit that ensures the device is in a known state after power-up. The device automatically resets its internal state and sets the output pins to a high-impedance state during power-on.
  • The recommended operating voltage range for the MX25U12835FM2I-10G is 2.7V to 3.6V.
