MX25U25643GM2I00 - Macronix

Description: FLASH - NOR (SLC) Memory IC 256Mbit SPI - Quad I/O, QPI, DTR 133 MHz 8 ns 8-SOP

Download MX25U25643GM2I00 Model

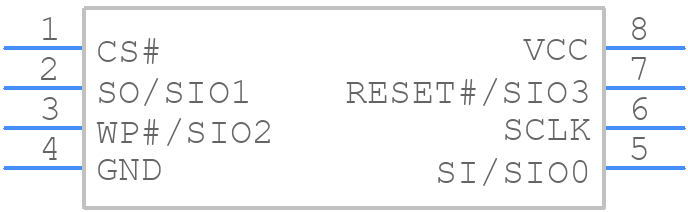

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX25U25643GM2I00 - Macronix PCB footprint - Small Outline Packages - Small Outline Packages - 8-SOP (200MIL)
click to zoom
3D Models
MX25U25643GM2I00 - Macronix  - 3D model - Small Outline Packages - 8-SOP (200MIL)
click to zoom

MX25U25643GM2I00 Details

  • Manufacturer Part Number:

    MX25U25643GM2I00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Date Of Intro:

    2020-05-05

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    6.1

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    5.28 mm

  • Memory Density:

    268435456 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    33554432 words

  • Number of Words Code:

    32000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    2.16 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.00003 A

  • Supply Current-Max:

    0.025 mA

  • Supply Voltage-Max (Vsup):

    2 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    5.23 mm

  • Write Protection:

    HARDWARE/SOFTWARE

MX25U25643GM2I00 Frequently Asked Questions (FAQs)

  • The MX25U25643GM2I00 can operate from -40°C to 85°C, with an extended temperature range option available from -40°C to 105°C.
  • The HOLD# pin should be driven low to pause the current operation and enter a low-power state. It should be driven high to resume the operation.
  • The power-up sequence should be: VCC, then VPP (if used), then CE# (Chip Enable), then other control signals. The power-down sequence should be the reverse of this.
  • The device density and configuration can be determined by reading the Device ID (0x20BA18) and the Configuration Register (0x15).
  • The WP# pin is used to prevent write operations to the Status Register and the Configuration Register. When WP# is low, these registers are write-protected.
