MX25U25643GXDI00 - Macronix

Description: NOR Flash Serial (SPI, Dual SPI, Quad SPI) 1.8V 256M-bit 256M/128M/64M x 1/2-bit/4-bit 8ns

Download MX25U25643GXDI00 Model

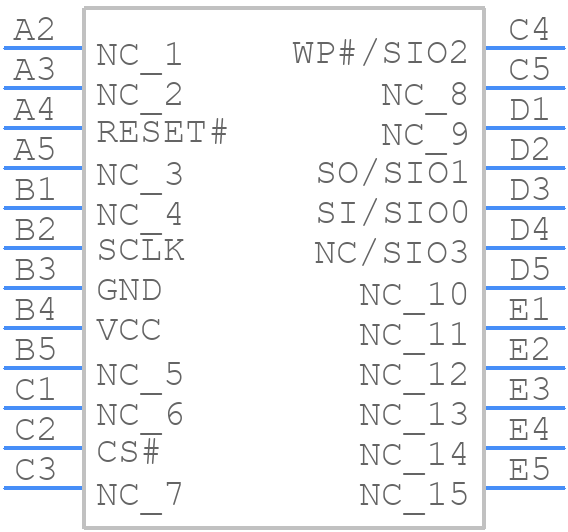

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX25U25643GXDI00 - Macronix PCB footprint - BGA - BGA - 24-Ball BGA (5x5 ball array
click to zoom
3D Models
MX25U25643GXDI00 - Macronix  - 3D model - BGA - 24-Ball BGA (5x5 ball array
click to zoom

MX25U25643GXDI00 Details

  • Manufacturer Part Number:

    MX25U25643GXDI00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Date Of Intro:

    2020-05-05

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    6.35

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PBGA-B24

  • Length:

    8 mm

  • Memory Density:

    268435456 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Words:

    33554432 words

  • Number of Words Code:

    32000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TBGA

  • Package Equivalence Code:

    BGA24,5X5,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    1.2 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.00003 A

  • Supply Current-Max:

    0.025 mA

  • Supply Voltage-Max (Vsup):

    2 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Type:

    NOR TYPE

  • Width:

    6 mm

  • Write Protection:

    HARDWARE/SOFTWARE

MX25U25643GXDI00 Frequently Asked Questions (FAQs)

  • The MX25U25643GXDI00 has a minimum of 100,000 erase cycles per sector, and a total of 20,000,000 erase cycles for the entire device.
  • The HOLD# pin should be pulled high during low power modes to prevent unwanted commands from being executed. It's recommended to use an external pull-up resistor to ensure the pin is held high.
  • The MX25U25643GXDI00 supports clock frequencies up to 133 MHz. However, it's recommended to use a clock frequency of 100 MHz or lower to ensure reliable operation and minimize power consumption.
  • The WP# pin should be pulled low during write operations to enable write protection. It's recommended to use an external pull-down resistor to ensure the pin is held low.
  • The typical programming time for the MX25U25643GXDI00 is around 1.5 ms per 256-byte page. However, this can vary depending on the specific use case and operating conditions.
