Part Image

MX25U25643GZ4I00-T - Macronix

Description: NOR Flash Serial NOR 1.8V 256Mbit x4 I/O WSON-8 8x6mm

Download MX25U25643GZ4I00-T Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MX25U25643GZ4I00-T model

Email notifications will be applied after download.

Send part feedback

Symbol

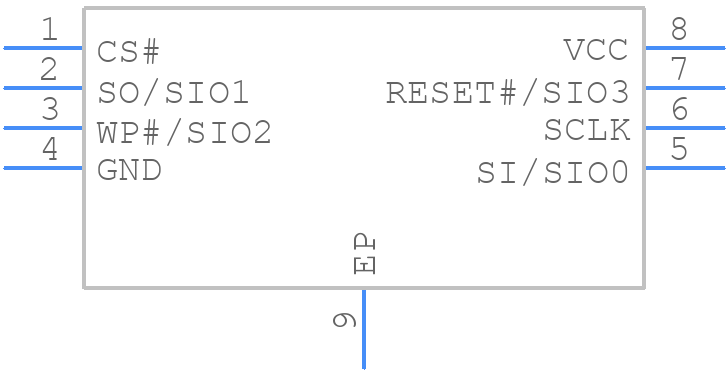

MX25U25643GZ4I00-T - Macronix - PCB symbol

PCB Footprints

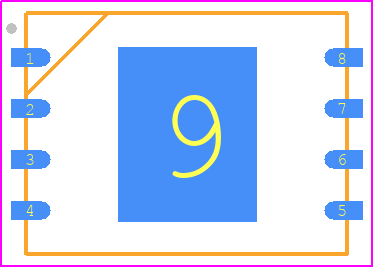

MX25U25643GZ4I00-T - Macronix PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-WSON (8x6x0.8mm)

3D Models

MX25U25643GZ4I00-T - Macronix - 3D model - Small Outline No-lead - 8-WSON (8x6x0.8mm)

Datasheet Download Datasheet
Stock & Prices Price & Stock for MX25U25643GZ4I00-T
Part Number MX25U25643GZ4I00-T
Manufacturer Macronix
Pin Count 9
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - 8-WSON (8x6x0.8mm)
Released Date Jun 10, 2024
Last Modified Date Jun 10, 2024 8:43 AM UTC
Pinout / Pin List Click Here (Member Only)

MX25U25643GZ4I00-T Details

Manufacturer Part Number:
MX25U25643GZ4I00-T
Manufacturer:
Macronix International Co Ltd

Trust Checks

Community Provided

System Verified

Community Approved

MX25U25643GZ4I00-T Overview

Use the download button to access the MX25U25643GZ4I00-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MX25U, or try a keyword search, such as Flash Memories
