MX25U3235FZCI-10G - Macronix

Description: 1.8V, 32M-BIT [x 1/x 2/x 4] CMOS MXSMIO® (SERIAL MULTI I/O) FLASH MEMORY

Download MX25U3235FZCI-10G Model

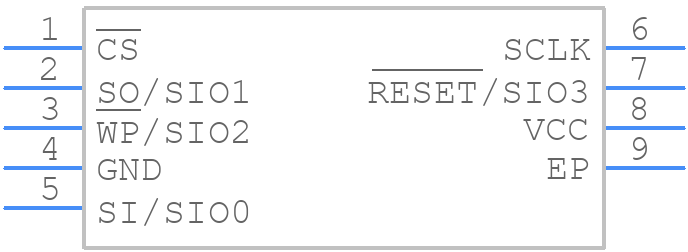

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX25U3235FZCI-10G - Macronix PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-XSON (4x4mm)
click to zoom
3D Models
MX25U3235FZCI-10G - Macronix  - 3D model - Small Outline No-lead - 8-XSON (4x4mm)
click to zoom

MX25U3235FZCI-10G Details

  • Manufacturer Part Number:

    MX25U3235FZCI-10G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    XSON-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    5

  • Additional Feature:

    ALSO IT CAN BE CONFIGURED AS 32M X 1 BIT

  • Alternate Memory Width:

    2

  • Clock Frequency-Max (fCLK):

    104 MHz

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Memory Density:

    33554432 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    4

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    8388608 words

  • Number of Words Code:

    8000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    8MX4

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    0.5 mm

  • Supply Voltage-Max (Vsup):

    2 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Width:

    4 mm

MX25U3235FZCI-10G Frequently Asked Questions (FAQs)

  • The MX25U3235FZCI-10G has a minimum of 100,000 erase cycles, but the actual number may vary depending on usage and operating conditions.
  • The HOLD# signal should be kept low during read and write operations to ensure proper data transfer. If the HOLD# signal is asserted high, the device will enter a wait state and all operations will be suspended.
  • The recommended power-up sequence is to apply VCC first, followed by VPP (if used), and then the clock signal. This ensures proper device initialization and prevents latch-up or other issues.
  • The optimal clock frequency depends on the specific application and system requirements. The MX25U3235FZCI-10G supports clock frequencies up to 133 MHz, but you should consider factors such as system latency, power consumption, and data transfer rates when selecting the clock frequency.
  • The WP# signal is used to protect the device from accidental writes or erases. When WP# is asserted low, the device is in a write-protected state, and any write or erase operations will be ignored.
