MX25U51245GZ4I00 - Macronix

Description: NOR Flash Serial-SPI 1.8V 512M-bit 512M/256M/128M x 1/2-bit/4-bit 8ns 8-Pin WSON EP

Download MX25U51245GZ4I00 Model
Schematic

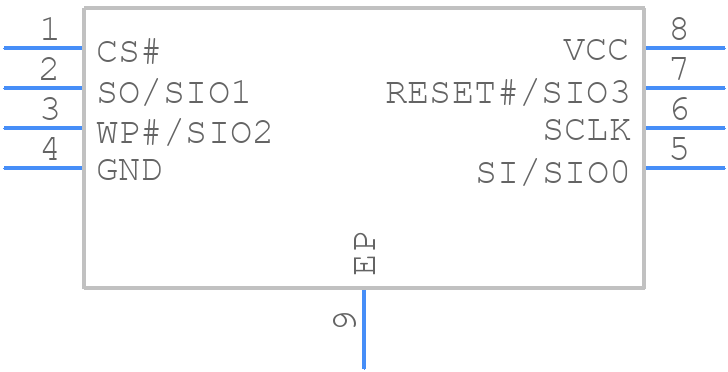

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX25U51245GZ4I00 - Macronix PCB footprint - Small Outline No-lead - Small Outline No-lead - MX25U51245GZ4I00
click to zoom
3D Models
MX25U51245GZ4I00 - Macronix  - 3D model - Small Outline No-lead - MX25U51245GZ4I00
click to zoom

MX25U51245GZ4I00 Details

  • Manufacturer Part Number:

    MX25U51245GZ4I00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WSON-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    4

  • Clock Frequency-Max (fCLK):

    166 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-XDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    8 mm

  • Memory Density:

    536870912 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    67108864 words

  • Number of Words Code:

    64000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.00005 A

  • Supply Current-Max:

    0.04 mA

  • Supply Voltage-Max (Vsup):

    2 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    6 mm

  • Write Protection:

    HARDWARE/SOFTWARE

MX25U51245GZ4I00 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the MX25U51245GZ4I00 is 133 MHz.
  • The MX25U51245GZ4I00 can endure up to 100,000 program/erase cycles before it starts to degrade.
  • The typical write endurance of the MX25U51245GZ4I00 is 3,000 to 5,000 cycles.
  • The MX25U51245GZ4I00 has a power-fail detection and recovery mechanism to prevent data corruption in case of power failures during write operations.
  • The WP# (Write Protect) pin is used to prevent accidental writes to the device. When the WP# pin is low, the device is in write-protect mode, and no writes are allowed.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MX25U51245GZ4I00 Overview

Use the download button to access the MX25U51245GZ4I00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MX25U, or try a keyword search, such as Flash Memories
