Part Image

MX25U6432FZNI02 - Macronix

Description: NOR Flash Serial (SPI, Dual SPI, Quad SPI) 1.8V 64M-bit 64M/32M/16M x 1/2-bit/4-bit 8ns 8-Pin WSON EP

Download MX25U6432FZNI02 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

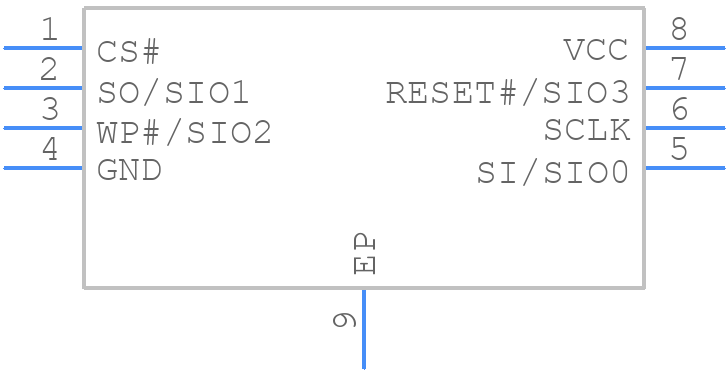

Symbol
MX25U6432FZNI02 - Macronix - PCB symbol
click to zoom
PCB Footprints
MX25U6432FZNI02 - Macronix PCB footprint - Small Outline No-lead - Small Outline No-lead - MX25U6432FZNI02
click to zoom
3D Models
MX25U6432FZNI02 - Macronix - 3D model - Small Outline No-lead - MX25U6432FZNI02
click to zoom

MX25U6432FZNI02 Details

  • Manufacturer Part Number:

    MX25U6432FZNI02

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    4

  • Memory IC Type:

    FLASH

  • Terminal Finish:

    Tin (Sn)

MX25U6432FZNI02 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the MX25U6432FZNI02 is 104 MHz.
  • The MX25U6432FZNI02 can endure up to 100,000 program/erase cycles before it starts to degrade.
  • The typical programming time for the MX25U6432FZNI02 is 1.5 ms per 256-byte block.
  • Yes, the MX25U6432FZNI02 supports quad-SPI mode, which allows for faster data transfer rates.
  • The operating temperature range of the MX25U6432FZNI02 is -40°C to 85°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MX25U6432FZNI02 Overview

Use the download button to access the MX25U6432FZNI02 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MX25U, or try a keyword search, such as Flash Memories
