MX25UM25645GMI00 - Macronix

Description: MEMORY

Download MX25UM25645GMI00 Model

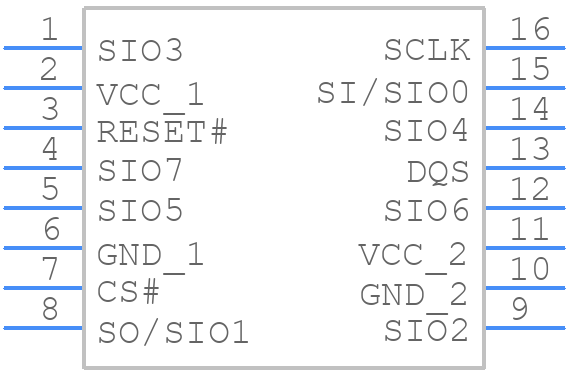

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX25UM25645GMI00 - Macronix PCB footprint - Small Outline Packages - Small Outline Packages - MX25UM25645GMI00
click to zoom
3D Models
MX25UM25645GMI00 - Macronix  - 3D model - Small Outline Packages - MX25UM25645GMI00
click to zoom

MX25UM25645GMI00 Details

  • Manufacturer Part Number:

    MX25UM25645GMI00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP,

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    6.1

  • Alternate Memory Width:

    1

  • Clock Frequency-Max (fCLK):

    133 MHz

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Memory Density:

    268435456 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of Words:

    33554432 words

  • Number of Words Code:

    32000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32MX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    2 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.52 mm

MX25UM25645GMI00 Frequently Asked Questions (FAQs)

  • The MX25UM25645GMI00 can operate from -40°C to 85°C, with an extended temperature range option available from -40°C to 105°C.
  • The HOLD# pin should be pulled high during power-up and power-down sequences to prevent unwanted writes or erases. It's recommended to connect a pull-up resistor to VCC.
  • The MX25UM25645GMI00 supports clock frequencies up to 133 MHz, but it's recommended to use a clock frequency of 50 MHz or lower for reliable operation.
  • Implement a power-fail detection circuit and use the WP# pin to protect the device from unwanted writes during power failures. Additionally, use the Status Register to monitor the device's status and recover from unexpected resets.
  • The typical programming time for a single page (256 bytes) is around 1.2 ms, but this can vary depending on the operating conditions and the number of pages being programmed.
