MX25UM25645GXDI00-T - Macronix

Description: NOR Flash Serial NOR 1.8V 256Mbit x8 I/O BGA-24 6x8mm

Download MX25UM25645GXDI00-T Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MX25UM25645GXDI00-T model

Email notifications will be applied after download.

Send part feedback

Symbol

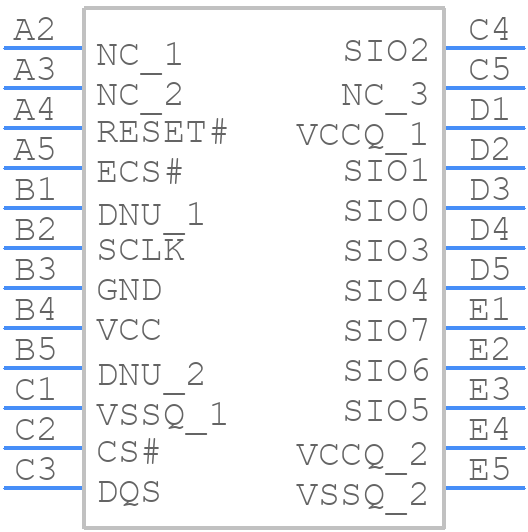

MX25UM25645GXDI00-T - Macronix - PCB symbol

PCB Footprints

MX25UM25645GXDI00-T - Macronix PCB footprint - BGA - BGA - 24-ball TFBGA (6mmx8mm, 5x5 ball array)

3D Models

MX25UM25645GXDI00-T - Macronix - 3D model - BGA - 24-ball TFBGA (6mmx8mm, 5x5 ball array)

Datasheet Download Datasheet
Stock & Prices Price & Stock for MX25UM25645GXDI00-T
Part Number MX25UM25645GXDI00-T
Manufacturer Macronix
Pin Count 24
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - 24-ball TFBGA (6mmx8mm, 5x5 ball array)
Released Date Dec 21, 2024
Last Modified Date May 21, 2026 1:42 PM UTC
Pinout / Pin List Click Here (Member Only)

MX25UM25645GXDI00-T Details

Manufacturer Part Number:
MX25UM25645GXDI00-T
Manufacturer:
Macronix International Co Ltd

Trust Checks

Expert Contribution

System Verified

Community Approved

MX25UM25645GXDI00-T Overview

Use the download button to access the MX25UM25645GXDI00-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MX25U, or try a keyword search, such as Flash Memories
