MX25UM51245GMI00 - Macronix

Description: MEMORY

Download MX25UM51245GMI00 Model
Schematic
symbols

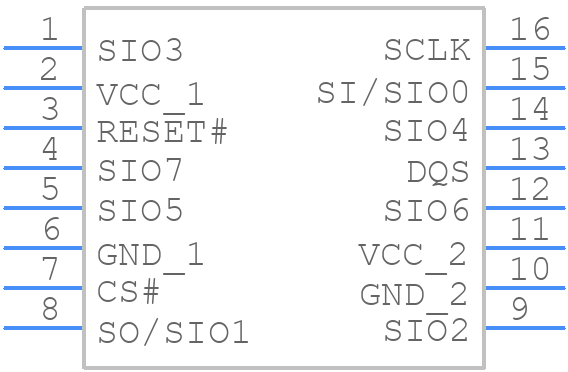

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX25UM51245GMI00 - Macronix PCB footprint - Small Outline Packages - Small Outline Packages - MX25UM51245GMI00
click to zoom
3D Models
MX25UM51245GMI00 - Macronix  - 3D model - Small Outline Packages - MX25UM51245GMI00
click to zoom

MX25UM51245GMI00 Details

  • Manufacturer Part Number:

    MX25UM51245GMI00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    6.2

  • Alternate Memory Width:

    1

  • Clock Frequency-Max (fCLK):

    133 MHz

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Memory Density:

    536870912 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of Words:

    67108864 words

  • Number of Words Code:

    64000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64MX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    2 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.52 mm

MX25UM51245GMI00 Frequently Asked Questions (FAQs)

  • The MX25UM51245GMI00 has a minimum of 100,000 erase cycles per sector, and a total of 20,000,000 erase cycles for the entire device.
  • The HOLD# signal should be kept low during read and write operations. If the HOLD# signal is asserted high, the device will enter a 'hold' state, and all current operations will be suspended.
  • The recommended power-up sequence is to apply VCC first, followed by VIO, and then the clock signal. This ensures that the device is properly initialized and ready for operation.
  • The device's status can be determined by reading the status register (SR) or the flag status register (FSR). These registers provide information on the device's current operation, such as whether it is busy or ready.
  • The WP# pin is a write protect pin that allows the user to protect the entire device or specific sectors from write operations. When the WP# pin is asserted low, the device or selected sectors are write-protected.
