MX25UM51245GXDI00 - Macronix

Description: NOR Flash Serial-SPI 1.8V 512M-bit 512M x 1 5ns 24-Pin CSP

Download MX25UM51245GXDI00 Model

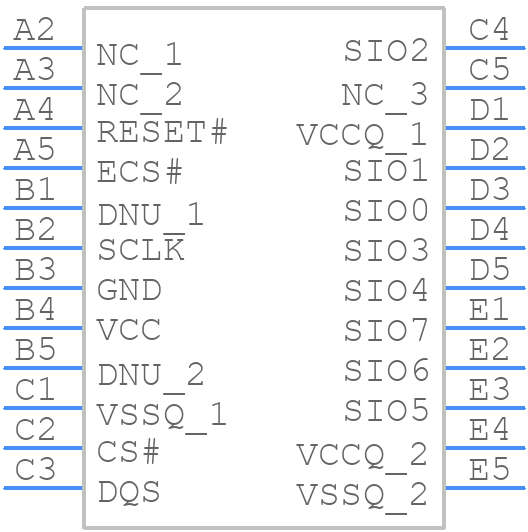

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX25UM51245GXDI00 - Macronix PCB footprint - BGA - BGA - 24-Ball BGA (5x5 ball array
click to zoom
3D Models
MX25UM51245GXDI00 - Macronix  - 3D model - BGA - 24-Ball BGA (5x5 ball array
click to zoom

MX25UM51245GXDI00 Details

  • Manufacturer Part Number:

    MX25UM51245GXDI00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    6

  • Alternate Memory Width:

    1

  • Clock Frequency-Max (fCLK):

    200 MHz

  • JESD-30 Code:

    R-PBGA-B24

  • Length:

    8 mm

  • Memory Density:

    536870912 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Words:

    67108864 words

  • Number of Words Code:

    64000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64MX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    2 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    6 mm

MX25UM51245GXDI00 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the MX25UM51245GXDI00 is 104 MHz.
  • The MX25UM51245GXDI00 can endure up to 100,000 program/erase cycles before it starts to degrade.
  • The typical programming time for the MX25UM51245GXDI00 is 1.5 ms per 256-byte block.
  • Yes, the MX25UM51245GXDI00 supports quad-SPI mode, which allows for faster data transfer rates.
  • The operating temperature range of the MX25UM51245GXDI00 is -40°C to 85°C.
