MX28F1000PPC-12C4 - Macronix

MX28F1000PPC-12C4 Details

• Manufacturer Part Number:

  MX28F1000PPC-12C4

• Part Life Cycle Code:

  Obsolete

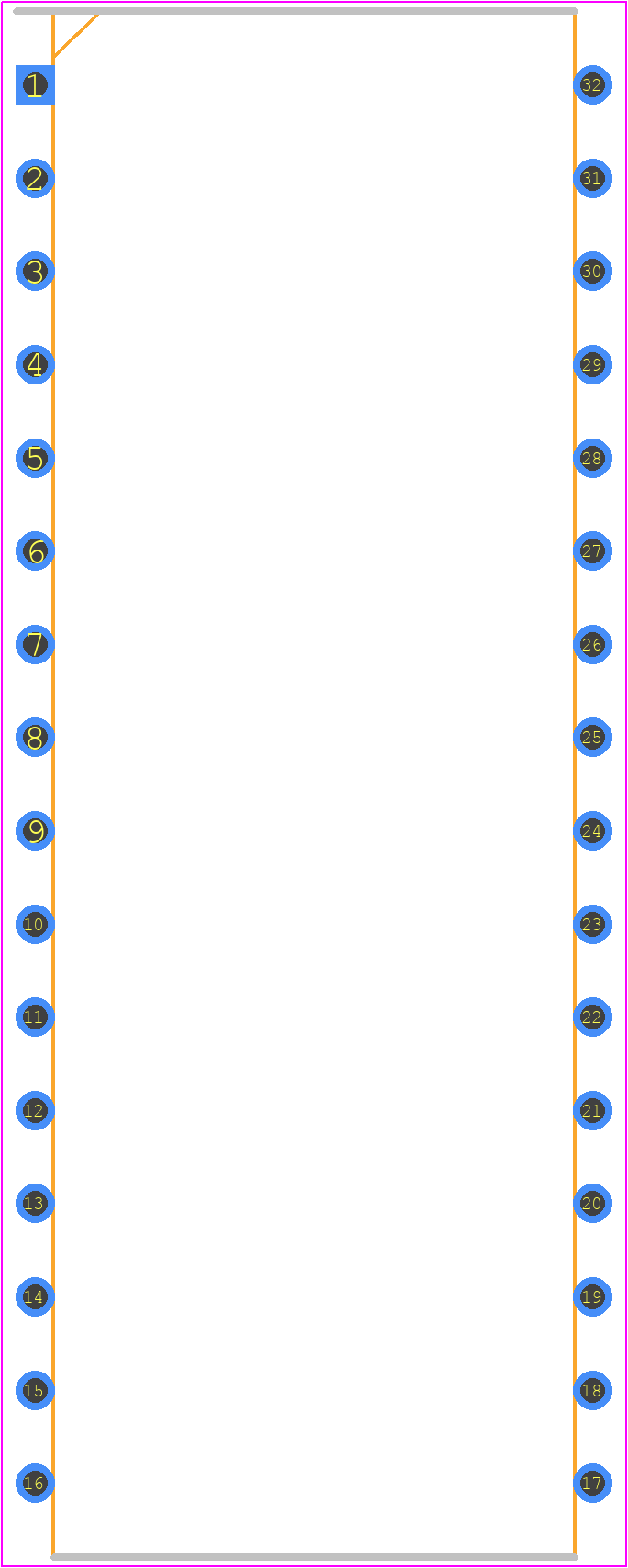

• Part Package Code:

  DIP

• Package Description:

  DIP, DIP32,.6

• Pin Count:

  32

• Reach Compliance Code:

  Unknown

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.51

• Manufacturer:

  Macronix International Co Ltd

• YTEOL:

  0

• Access Time-Max:

  120 ns

• Additional Feature:

  10000 ERASE/PROGRAM CYCLES

• Command User Interface:

  YES

• Data Polling:

  YES

• JESD-30 Code:

  R-PDIP-T32

• Length:

  41.91 mm

• Memory Density:

  1048576 bit

• Memory IC Type:

  FLASH

• Memory Width:

  8

• Number of Functions:

  1

• Number of Sectors/Size:

  4,7

• Number of Terminals:

  32

• Number of Words:

  131072 words

• Number of Words Code:

  128000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  70 °C

• Organization:

  128KX8

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP32,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Parallel/Serial:

  PARALLEL

• Programming Voltage:

  12 V

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.9022 mm

• Sector Size:

  4K,16K

• Standby Current-Max:

  0.0001 A

• Supply Current-Max:

  0.05 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Toggle Bit:

  YES

• Type:

  NOR TYPE

• Width:

  15.24 mm
