MX29F1610AMC-10 - Macronix

MX29F1610AMC-10 Details

• Manufacturer Part Number:

  MX29F1610AMC-10

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

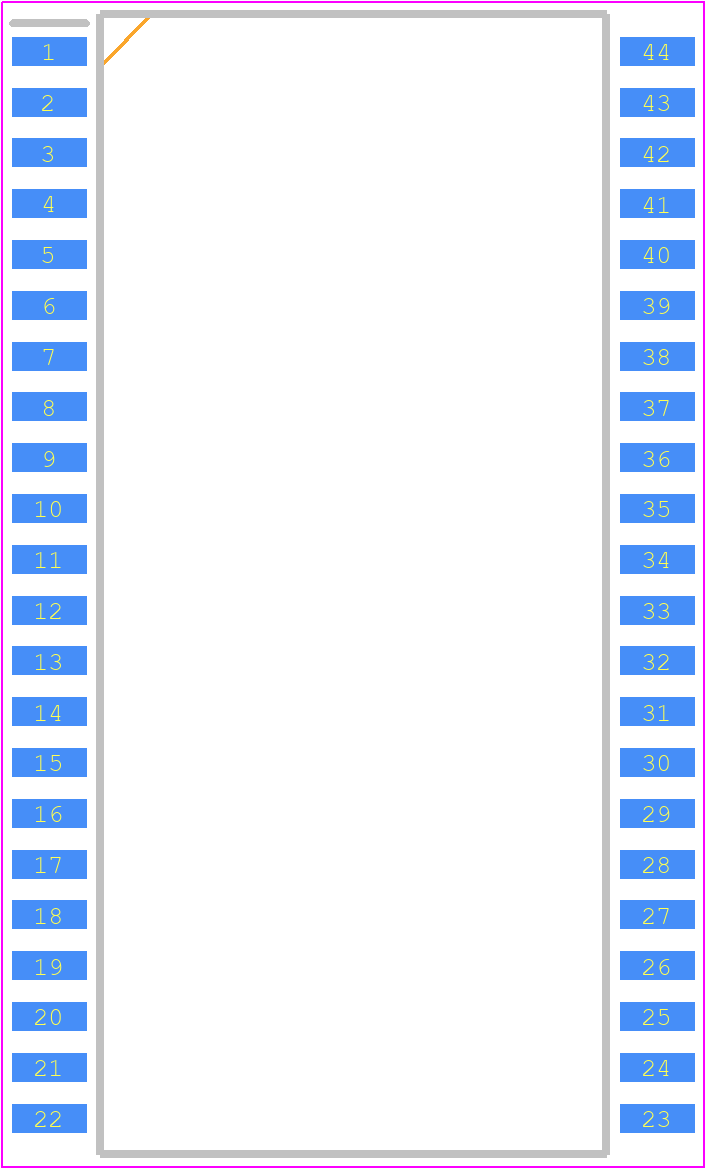

• Package Description:

  0.500 INCH, PLASTIC, SOP-44

• Pin Count:

  44

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.51

• Manufacturer:

  Macronix International Co Ltd

• YTEOL:

  0

• Access Time-Max:

  100 ns

• Alternate Memory Width:

  8

• Command User Interface:

  YES

• Data Polling:

  NO

• Endurance:

  100000 Write/Erase Cycles

• JESD-30 Code:

  R-PDSO-G44

• JESD-609 Code:

  e0

• Length:

  28.5 mm

• Memory Density:

  16777216 bit

• Memory IC Type:

  FLASH

• Memory Width:

  16

• Number of Functions:

  1

• Number of Sectors/Size:

  16

• Number of Terminals:

  44

• Number of Words:

  1048576 words

• Number of Words Code:

  1000000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  70 °C

• Organization:

  1MX16

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP44,.63

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Page Size:

  64/128 words

• Parallel/Serial:

  PARALLEL

• Programming Voltage:

  5 V

• Qualification Status:

  Not Qualified

• Ready/Busy:

  YES

• Seated Height-Max:

  3 mm

• Sector Size:

  128K

• Standby Current-Max:

  0.00002 A

• Supply Current-Max:

  0.06 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Toggle Bit:

  NO

• Type:

  NOR TYPE

• Width:

  12.6 mm
