MX29GL256FUXFI-11G - Macronix

MX29GL256FUXFI-11G Details

• Manufacturer Part Number:

  MX29GL256FUXFI-11G

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  BGA

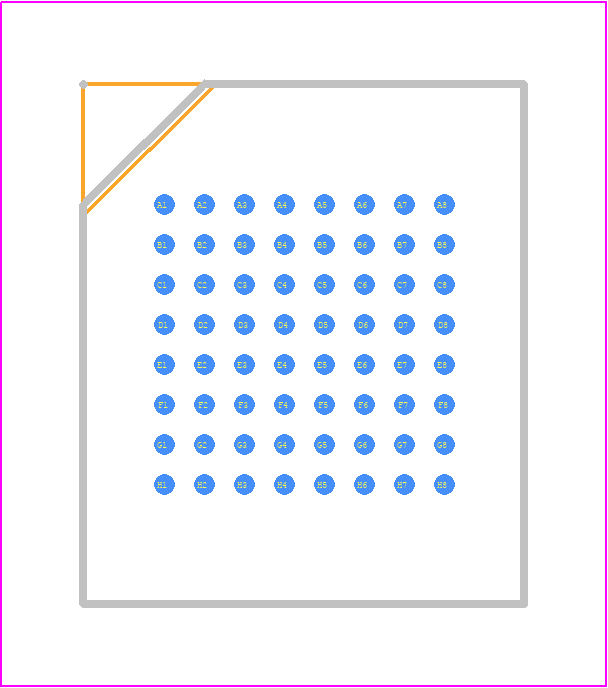

• Package Description:

  11 X 13 MM, 1.40 MM HEIGHT, 1 MM PITCH, HALOGEN FREE AND ROHS COMPLIANT, MO-192, LFBGA-64

• Pin Count:

  64

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.51

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Macronix International Co Ltd

• YTEOL:

  4.7

• Access Time-Max:

  110 ns

• Alternate Memory Width:

  8

• Command User Interface:

  YES

• Common Flash Interface:

  YES

• Data Polling:

  YES

• JESD-30 Code:

  R-PBGA-B64

• Length:

  13 mm

• Memory Density:

  268435456 bit

• Memory IC Type:

  FLASH

• Memory Width:

  16

• Number of Functions:

  1

• Number of Sectors/Size:

  256

• Number of Terminals:

  64

• Number of Words:

  16777216 words

• Number of Words Code:

  16000000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  16MX16

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LBGA

• Package Equivalence Code:

  BGA64,8X8,40

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, LOW PROFILE

• Page Size:

  8/16 words

• Parallel/Serial:

  PARALLEL

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Programming Voltage:

  3 V

• Qualification Status:

  Not Qualified

• Ready/Busy:

  YES

• Seated Height-Max:

  1.4 mm

• Sector Size:

  128K

• Standby Current-Max:

  0.00001 A

• Supply Current-Max:

  0.03 mA

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  2.7 V

• Supply Voltage-Nom (Vsup):

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Toggle Bit:

  YES

• Type:

  NOR TYPE

• Width:

  11 mm
