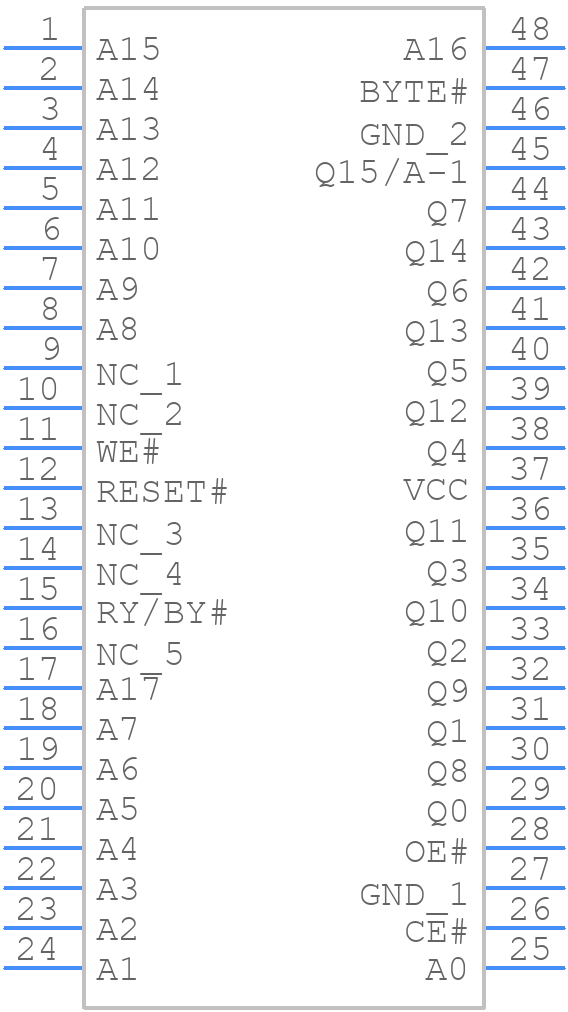

MX29LV400CTTI-70G - Macronix

MX29LV400CTTI-70G Details

• Manufacturer Part Number:

  MX29LV400CTTI-70G

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  TSOP1

• Package Description:

  TSOP-48

• Pin Count:

  48

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.51

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Macronix International Co Ltd

• YTEOL:

  4

• Access Time-Max:

  70 ns

• Alternate Memory Width:

  8

• Boot Block:

  TOP

• Command User Interface:

  YES

• Common Flash Interface:

  YES

• Data Polling:

  YES

• Data Retention Time-Min:

  20

• Endurance:

  100000 Write/Erase Cycles

• JESD-30 Code:

  R-PDSO-G48

• JESD-609 Code:

  e3

• Length:

  18.4 mm

• Memory Density:

  4194304 bit

• Memory IC Type:

  FLASH

• Memory Width:

  16

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Sectors/Size:

  1,2,1,7

• Number of Terminals:

  48

• Number of Words:

  262144 words

• Number of Words Code:

  256000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  256KX16

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP48,.8,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Parallel/Serial:

  PARALLEL

• Peak Reflow Temperature (Cel):

  260

• Programming Voltage:

  3 V

• Qualification Status:

  Not Qualified

• Ready/Busy:

  YES

• Seated Height-Max:

  1.2 mm

• Sector Size:

  16K,8K,32K,64K

• Standby Current-Max:

  0.000005 A

• Supply Current-Max:

  0.03 mA

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  2.7 V

• Supply Voltage-Nom (Vsup):

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  40

• Toggle Bit:

  YES

• Type:

  NOR TYPE

• Width:

  12 mm
