MX30LF4GE8AB-TI - Macronix

Description: 1G/2G/4G-bit NAND Flash Memory

Download MX30LF4GE8AB-TI Model

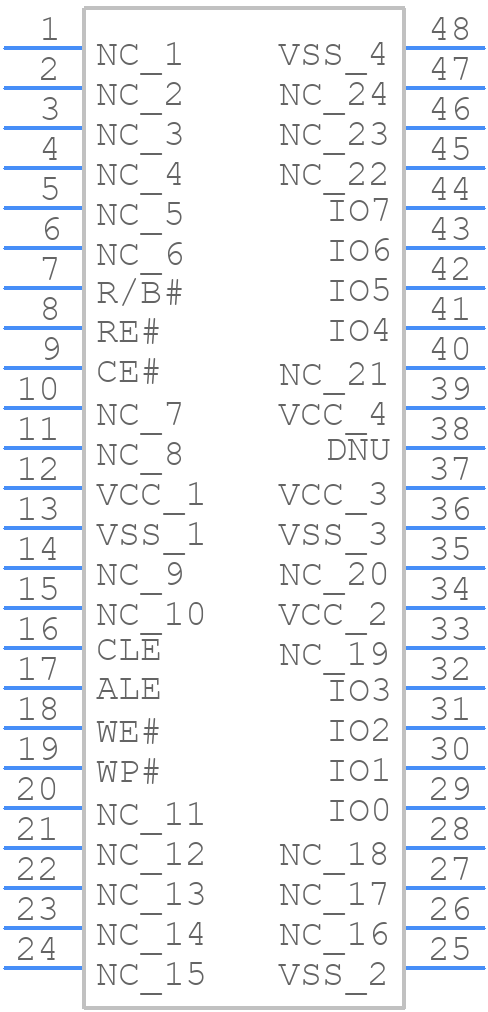

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX30LF4GE8AB-TI - Macronix PCB footprint - Small Outline Packages - Small Outline Packages - 48-TSOP(I) (12mm x 20mm)
click to zoom
3D Models
MX30LF4GE8AB-TI - Macronix  - 3D model - Small Outline Packages - 48-TSOP(I) (12mm x 20mm)
click to zoom

MX30LF4GE8AB-TI Details

  • Manufacturer Part Number:

    MX30LF4GE8AB-TI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    12 X 20 MM, HALOGEN FREE AND ROHS COMPLIANT, MO-142, TSOP1-48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    3

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e3

  • Length:

    18.4 mm

  • Memory Density:

    4294967296 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Words:

    536870912 words

  • Number of Words Code:

    512000000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    512MX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Parallel/Serial:

    PARALLEL

  • Programming Voltage:

    2.7 V

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Type:

    SLC NAND TYPE

  • Width:

    12 mm

MX30LF4GE8AB-TI Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MX30LF4GE8AB-TI is 2.7V to 3.6V.
  • The hold and WP pins should be pulled high during power-up and power-down sequences to prevent any accidental writes or erases.
  • The MX30LF4GE8AB-TI supports up to 100,000 erase cycles.
  • To ensure data retention, the device should be powered down correctly, and the power supply voltage should be within the recommended operating range.
