MX30UF1G18AC-TI - Macronix

Description: MX30UF1G18AC-TI, Parallel NAND Flash Memory, 128M x 8 bit, 64M x 16 bit 1Gbit, 25ns, 1.7 → 1.95 V, 48-Pin, TSOP

Download MX30UF1G18AC-TI Model

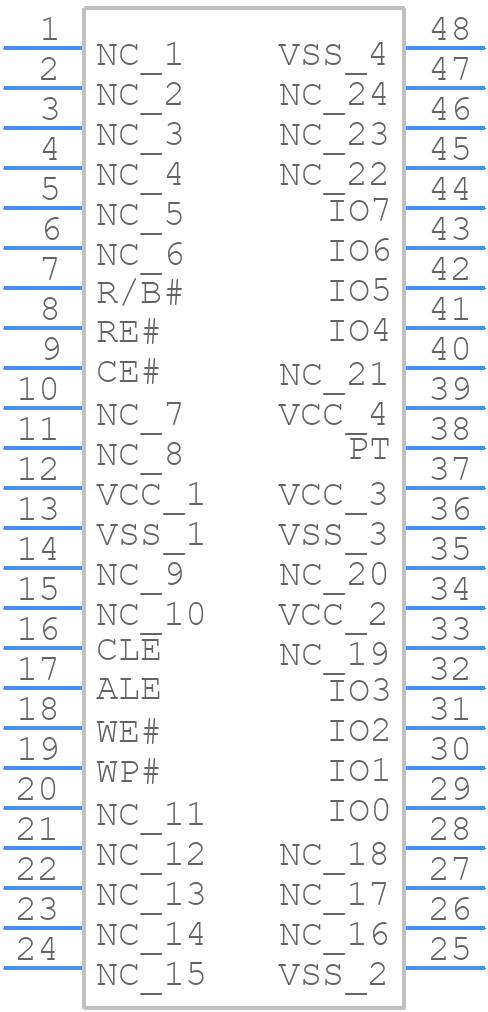

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX30UF1G18AC-TI - Macronix PCB footprint - Small Outline Packages - Small Outline Packages - TSOP (I) 48L
click to zoom
3D Models
MX30UF1G18AC-TI - Macronix  - 3D model - Small Outline Packages - TSOP (I) 48L
click to zoom

MX30UF1G18AC-TI Details

  • Manufacturer Part Number:

    MX30UF1G18AC-TI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSOP1-48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    4.75

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e3

  • Length:

    18.4 mm

  • Memory Density:

    1073741824 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Words:

    134217728 words

  • Number of Words Code:

    128000000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128MX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Parallel/Serial:

    PARALLEL

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Type:

    SLC NAND TYPE

  • Width:

    12 mm

MX30UF1G18AC-TI Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MX30UF1G18AC-TI is 2.7V to 3.6V.
  • The power-up sequence should be VCC first, then VPP, and the power-down sequence should be VPP first, then VCC. This ensures that the device is properly initialized and avoids any potential damage.
  • The maximum operating frequency for the MX30UF1G18AC-TI is 133MHz.
  • The hold time requirements for the MX30UF1G18AC-TI are typically 0ns for the address and data lines, and 5ns for the control signals. Ensure that your design meets these requirements to ensure proper operation.
  • The typical programming cycle endurance for the MX30UF1G18AC-TI is 100,000 cycles.
