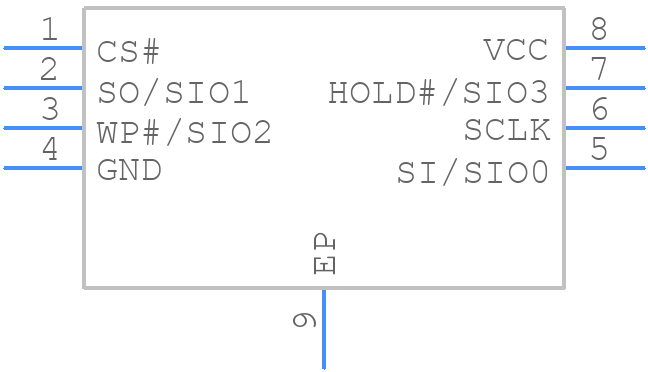

MX35LF2G14AC-Z4I - Macronix

MX35LF2G14AC-Z4I Details

• Manufacturer Part Number:

  MX35LF2G14AC-Z4I

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  WSON-8

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.51

• Factory Lead Time:

  10 Weeks

• Manufacturer:

  Macronix International Co Ltd

• YTEOL:

  6

• Clock Frequency-Max (fCLK):

  104 MHz

• Data Retention Time-Min:

  10

• Endurance:

  100000 Write/Erase Cycles

• JESD-30 Code:

  R-PDSO-N8

• Length:

  8 mm

• Memory Density:

  2147483648 bit

• Memory IC Type:

  FLASH

• Memory Width:

  8

• Number of Functions:

  1

• Number of Terminals:

  8

• Number of Words:

  268435456 words

• Number of Words Code:

  256000000

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  256MX8

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC8,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Parallel/Serial:

  SERIAL

• Programming Voltage:

  3 V

• Seated Height-Max:

  0.8 mm

• Serial Bus Type:

  QSPI

• Standby Current-Max:

  0.00005 A

• Supply Current-Max:

  0.03 mA

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  2.7 V

• Supply Voltage-Nom (Vsup):

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Type:

  SLC NAND TYPE

• Width:

  6 mm

• Write Protection:

  HARDWARE
