The recommended operating temperature range for the MX52LM04A11XSI is -40°C to 85°C, as specified in the datasheet. However, it's essential to note that the device can tolerate a wider temperature range during storage, which is -55°C to 125°C.
The MX52LM04A11XSI requires a specific power-up and power-down sequence to ensure proper operation. It's recommended to follow the sequence outlined in the datasheet, which involves ramping up the VCC supply voltage to the recommended operating range before applying the clock signal, and then powering down the device in the reverse order.
The MX52LM04A11XSI supports a maximum clock frequency of 166 MHz, as specified in the datasheet. However, it's essential to ensure that the device is operated within the recommended operating conditions and that the clock signal meets the specified timing requirements.
The MX52LM04A11XSI has a dedicated reset pin (RST) that can be used to reset the device. To implement the reset functionality, connect the RST pin to a logic high level for a minimum of 5 ns to initiate the reset sequence. The device will then reset and return to its default state.
The MX52LM04A11XSI has a latency of 5-7 clock cycles, depending on the operating frequency and access mode. This latency can affect system performance, especially in high-speed applications. To minimize the impact of latency, it's recommended to use the device's burst mode and optimize the system's memory access patterns.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MX52LM04A11XSI Overview

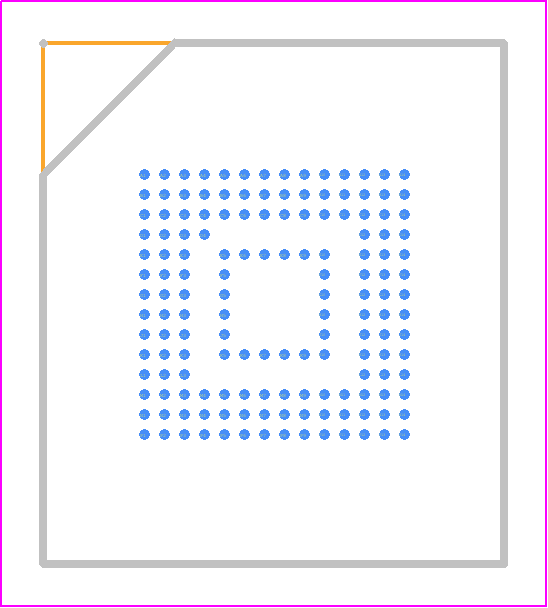

Use the download button to access the MX52LM04A11XSI schematic symbol, PCB footprint, and 3D model.
