MX66L1G45GMI-08G - Macronix

Description: NOR Flash Serial (SPI, Dual SPI, Quad SPI) 3V/3.3V 1G-bit 1G/512M/256M x 1/2-bit/4-bit 8ns 16-Pin SOP

Download MX66L1G45GMI-08G Model

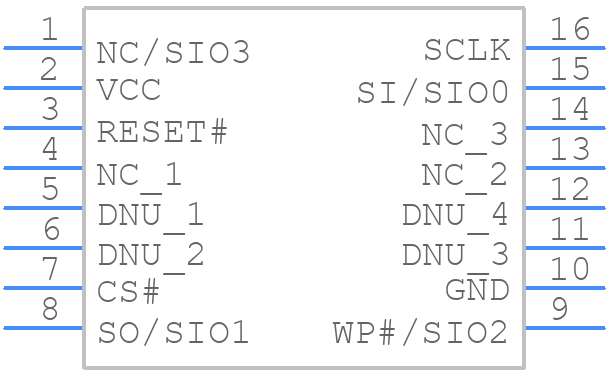

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX66L1G45GMI-08G - Macronix PCB footprint - Small Outline Packages - Small Outline Packages - 16-pin SOP (300mil)
click to zoom
3D Models
MX66L1G45GMI-08G - Macronix  - 3D model - Small Outline Packages - 16-pin SOP (300mil)
click to zoom

MX66L1G45GMI-08G Details

  • Manufacturer Part Number:

    MX66L1G45GMI-08G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    4

  • Additional Feature:

    ALSO IT CAN BE CONFIGURED AS 1G X 1 BIT

  • Alternate Memory Width:

    2

  • Clock Frequency-Max (fCLK):

    166 MHz

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Memory Density:

    1073741824 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of Words:

    268435456 words

  • Number of Words Code:

    256000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    256MX4

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.52 mm

MX66L1G45GMI-08G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MX66L1G45GMI-08G is 2.7V to 3.6V.
  • The power-up sequence should be VCC first, then VPP, and then the clock signal. For power-down, the sequence should be reversed. It's also recommended to add a 10uF capacitor between VCC and GND to filter out noise.
  • The maximum operating frequency for the MX66L1G45GMI-08G is 133MHz.
  • The hold time is 0ns and the setup time is 2ns. It's recommended to add a 10-20ns delay between the clock signal and the data signal to ensure proper data transfer.
