MX66L51235FMI-10G - Macronix

Description: MX66L51235FMI-10G, Serial NOR Flash Memory, 128M x 4 bit, 256M x 2 bit, 512M x 1 bit 512Mbit, 2.7 → 3.6 V

Download MX66L51235FMI-10G Model

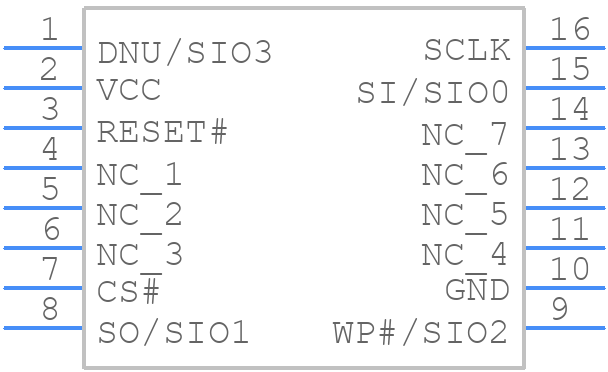

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX66L51235FMI-10G - Macronix PCB footprint - Small Outline Packages - Small Outline Packages - SOP
click to zoom
3D Models
MX66L51235FMI-10G - Macronix  - 3D model - Small Outline Packages - SOP
click to zoom

MX66L51235FMI-10G Details

  • Manufacturer Part Number:

    MX66L51235FMI-10G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOP-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    4

  • Additional Feature:

    ALSO IT CAN BE CONFIGURED AS 512M X 1 BIT

  • Alternate Memory Width:

    2

  • Clock Frequency-Max (fCLK):

    104 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Memory Density:

    536870912 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    4

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of Words:

    134217728 words

  • Number of Words Code:

    128000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128MX4

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.00004 A

  • Supply Current-Max:

    0.04 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    7.52 mm

  • Write Protection:

    HARDWARE/SOFTWARE

MX66L51235FMI-10G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MX66L51235FMI-10G is 2.7V to 3.6V.
  • The hold and WP pins should be pulled high during power-up and power-down sequences to prevent any accidental writes or erases.
  • The MX66L51235FMI-10G supports up to 100,000 erase cycles.
  • Wear leveling can be implemented by distributing write and erase operations across the entire memory space, using techniques such as dynamic wear leveling or static wear leveling.
  • The recommended method for storing and retrieving data in the MX66L51235FMI-10G is to use a serial interface, such as SPI or QSPI, and to follow the protocol specified in the datasheet.
