MX66LM1G45GXDI00-T - Macronix

Description: Supports Serial Peripheral Interface -- Mode 0 • Single Power Supply Operation - 2.7 to 3.6 volt for read, erase, and program operations • Protocol Support - Single I/O and Octa I/O - Support DTR (Double Transfer Rate) Mode • Fast frequency support - Support clock frequency up to - Single I/O mode: 133MHz - Octa I/O mode: 133MHz - Configurable dummy cycle number for OPI read operation • Octa Peripheral Interface (OPI) available • Equal Sectors with 4K byte each, or Equal Blocks with 64K b

Download MX66LM1G45GXDI00-T Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MX66LM1G45GXDI00-T model

Email notifications will be applied after download.

Send part feedback

Symbol

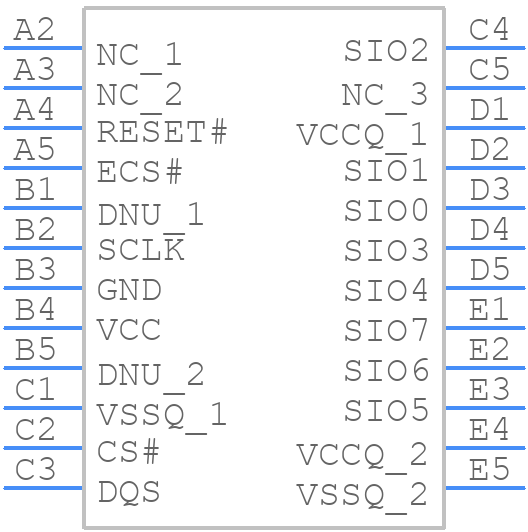

MX66LM1G45GXDI00-T - Macronix - PCB symbol

PCB Footprints

MX66LM1G45GXDI00-T - Macronix PCB footprint - BGA - BGA - 24-ball TFBGA (6mmx8mm, 5x5 ball array)

3D Models

MX66LM1G45GXDI00-T - Macronix - 3D model - BGA - 24-ball TFBGA (6mmx8mm, 5x5 ball array)

Datasheet Download Datasheet
Stock & Prices Price & Stock for MX66LM1G45GXDI00-T
Part Number MX66LM1G45GXDI00-T
Manufacturer Macronix
Pin Count 24
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - 24-ball TFBGA (6mmx8mm, 5x5 ball array)
Released Date Feb 8, 2025
Last Modified Date Feb 8, 2025 3:47 AM UTC
Pinout / Pin List Click Here (Member Only)

MX66LM1G45GXDI00-T Details

Manufacturer Part Number:
MX66LM1G45GXDI00-T
Manufacturer:
Macronix International Co Ltd

Trust Checks

Community Provided

System Verified

Community Approved

MX66LM1G45GXDI00-T Overview

Use the download button to access the MX66LM1G45GXDI00-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MX66L, or try a keyword search, such as Flash Memories
