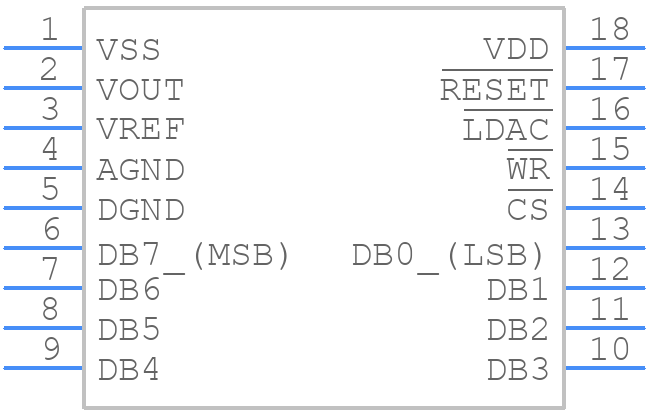

MX7224KCWN+T - Analog Devices

MX7224KCWN+T Details

• Manufacturer Part Number:

  MX7224KCWN+T

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  18-SOIC_W-300_MIL

• Package Description:

  SOP, SOP18,.4

• Pin Count:

  18

• Manufacturer Package Code:

  18-SOIC_W-300_MIL

• Reach Compliance Code:

  Compliant

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• HTS Code:

  8542.39.00.40

• Date Of Intro:

  1999-05-28

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Analog Output Voltage-Max:

  10 V

• Converter Type:

  D/A CONVERTER

• Input Bit Code:

  OFFSET BINARY

• Input Format:

  PARALLEL, 8 BITS

• JESD-30 Code:

  R-PDSO-G18

• JESD-609 Code:

  e3

• Length:

  11.55 mm

• Linearity Error-Max (EL):

  0.3906%

• Moisture Sensitivity Level:

  1

• Negative Supply Voltage-Nom:

  -5 V

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Terminals:

  18

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP18,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.65 mm

• Settling Time-Max:

  5 µs

• Settling Time-Nom (tstl):

  2 µs

• Supply Current-Max:

  6 mA

• Supply Voltage-Nom:

  15 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7.5 mm
