MX7224KN+ - Analog Devices

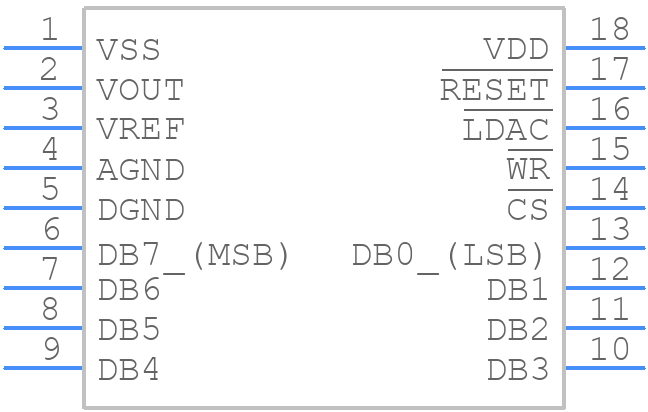

MX7224KN+ Details

• Manufacturer Part Number:

  MX7224KN+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

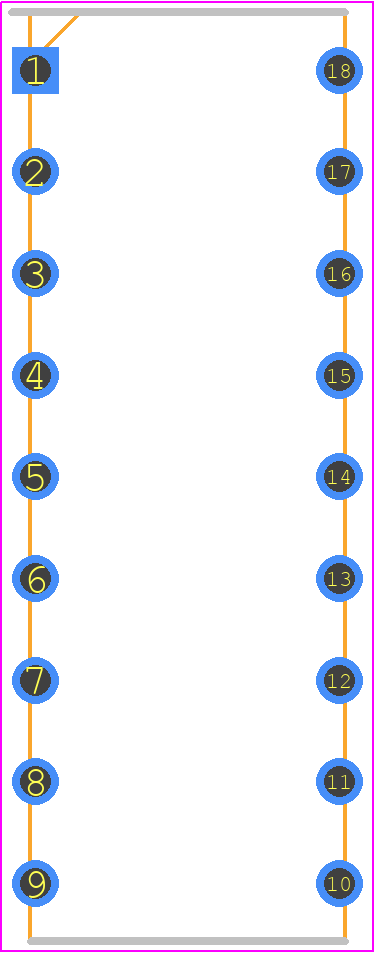

• Part Package Code:

  18-PDIP-300_MIL

• Package Description:

  0.300 INCH, ROHS COMPLIANT, PLASTIC, DIP-18

• Pin Count:

  18

• Manufacturer Package Code:

  18-PDIP-300_MIL

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• HTS Code:

  8542.39.00.40

• Date Of Intro:

  1999-05-28

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Analog Output Voltage-Max:

  10 V

• Converter Type:

  D/A CONVERTER

• Input Bit Code:

  OFFSET BINARY

• Input Format:

  PARALLEL, 8 BITS

• JESD-30 Code:

  R-PDIP-T18

• JESD-609 Code:

  e3

• Length:

  22.86 mm

• Linearity Error-Max (EL):

  0.3906%

• Moisture Sensitivity Level:

  1

• Negative Supply Voltage-Nom:

  -5 V

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Terminals:

  18

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP18,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.572 mm

• Settling Time-Max:

  5 µs

• Settling Time-Nom (tstl):

  2 µs

• Supply Current-Max:

  6 mA

• Supply Voltage-Nom:

  15 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7.62 mm
