MaxLinear provides a reference design and layout guidelines in their application notes and evaluation boards. It's recommended to follow these guidelines to ensure optimal performance and thermal management. Additionally, a thermal pad on the bottom of the package should be connected to a solid ground plane to dissipate heat.
The MXL86111I-AQB-R has a programmable input voltage range. The device can be configured using the SPI interface to set the input voltage range to 1.8V, 3.3V, or 5V. The configuration should be done according to the application requirements and the voltage level of the input signal.
The recommended power-up sequence is to power up the VCC supply first, followed by the AVCC supply. The power-up sequence should be controlled to ensure that the AVCC supply is powered up after the VCC supply has reached its nominal value.
MaxLinear provides a troubleshooting guide in their application notes and datasheet. It's recommended to follow the troubleshooting steps, which include checking the power supply, clock signal, and input signal integrity. Additionally, the device's internal registers can be accessed through the SPI interface to debug and diagnose issues.
The MXL86111I-AQB-R has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Additionally, external ESD protection devices can be added to the PCB design to provide additional protection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MXL86111I-AQB-R Overview

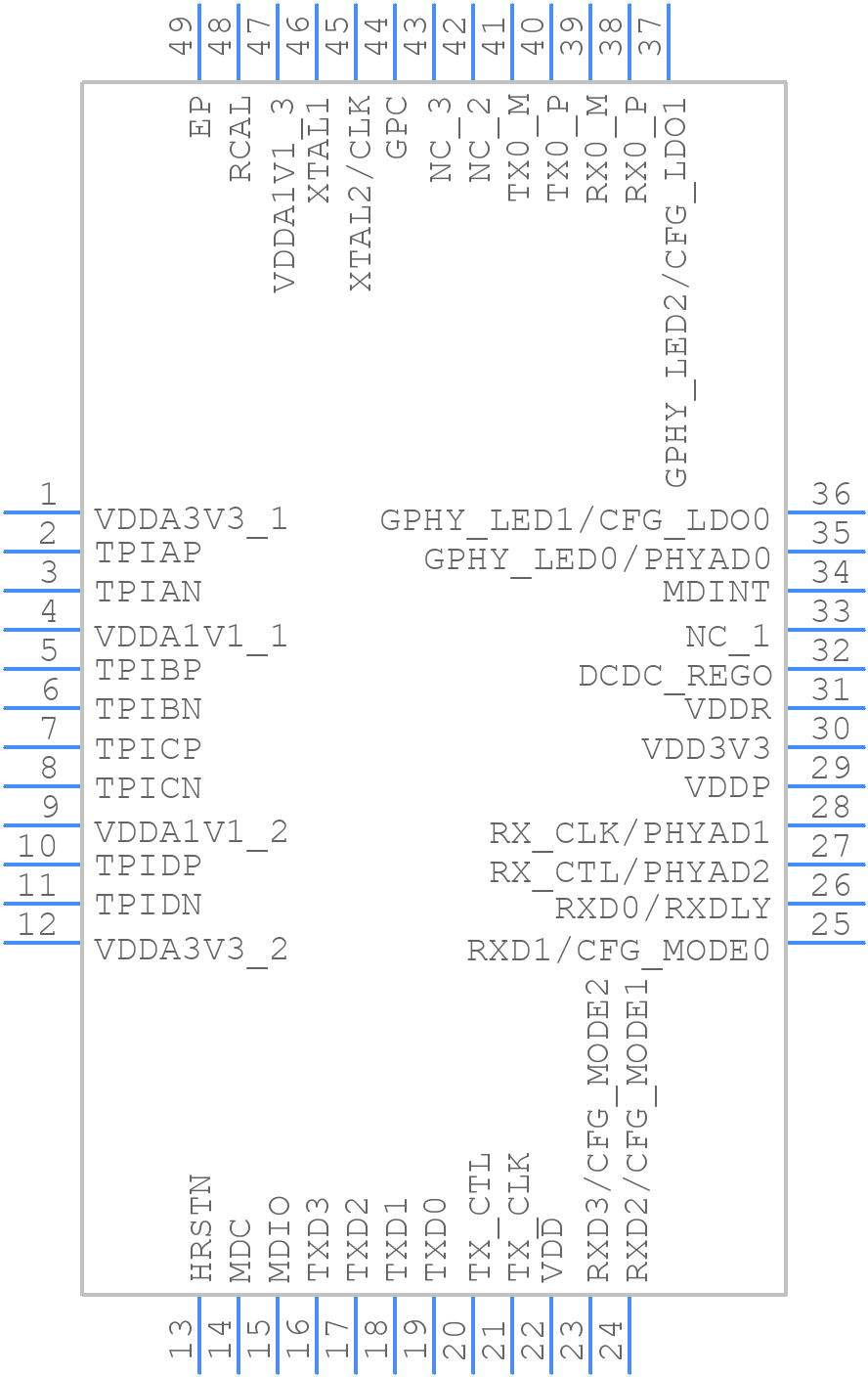

Use the download button to access the MXL86111I-AQB-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MXL86,
or try a keyword search, such as Network Interfaces
