Murata provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimize signal loss, and prevent electromagnetic interference.
The MYBSP01206AZFT has a maximum operating temperature of 125°C. To ensure reliable operation, it's crucial to provide adequate thermal management, such as using thermal vias, heat sinks, or thermal interface materials, to keep the component within its specified temperature range.
Murata recommends following the JEDEC J-STD-020D.1 standard for soldering and reflow processes. The recommended peak temperature is 260°C, with a maximum time above 220°C of 60 seconds. It's essential to follow these guidelines to prevent damage to the component.
To ensure reliability, follow proper handling, storage, and assembly procedures. Avoid exposing the component to mechanical stress, moisture, or extreme temperatures. Implement a robust design, including adequate power supply decoupling, signal integrity, and electromagnetic interference (EMI) mitigation.
The MYBSP01206AZFT is a high-frequency, low-loss balun transformer suitable for various applications, including wireless charging, RFID, NFC, and high-speed data transmission. It's commonly used in smartphones, tablets, laptops, and other portable devices.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MYBSP01206AZFT Overview

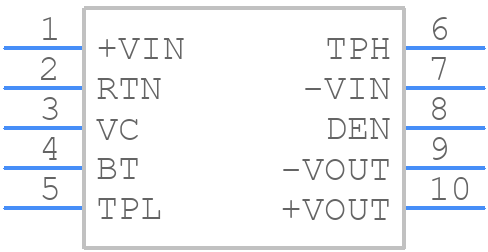

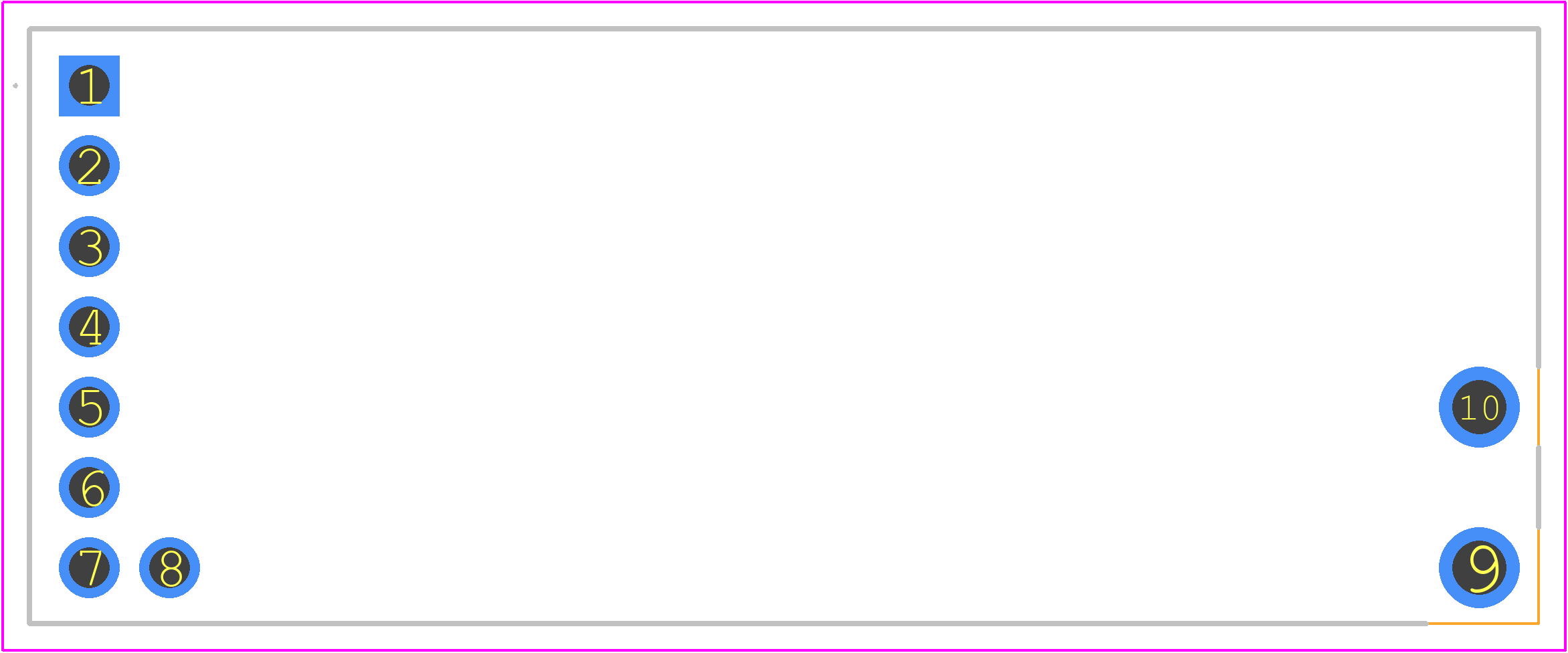

Use the download button to access the MYBSP01206AZFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MYBSP,
or try a keyword search, such as Power Supply Modules
About Murata Electronics
Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions.
Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
