MYMGA5R04RELA5RA - Murata Electronics

MYMGA5R04RELA5RA Frequently Asked Questions (FAQs)

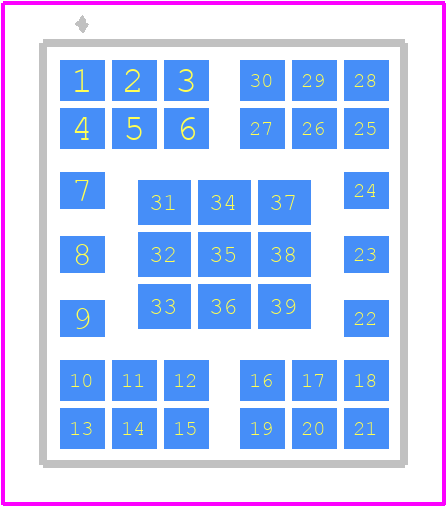

• What is the recommended land pattern for the MYMGA5R04RELA5RA?
  Murata recommends a land pattern with a pad size of 2.5mm x 1.5mm, and a spacing of 1.5mm between pads. A detailed land pattern can be found in the Murata's recommended land pattern document.
• How do I handle the thermal considerations for the MYMGA5R04RELA5RA?
  The MYMGA5R04RELA5RA has a thermal resistance of 10°C/W. To ensure reliable operation, it's recommended to provide a thermal pad on the PCB, and to use a thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K. Additionally, ensure good airflow around the component.
• What is the maximum operating temperature range for the MYMGA5R04RELA5RA?
  The MYMGA5R04RELA5RA is rated for operation from -40°C to +125°C. However, the maximum operating temperature range may vary depending on the specific application and environmental conditions.
• How do I ensure the reliability of the MYMGA5R04RELA5RA in high-vibration environments?
  To ensure reliability in high-vibration environments, it's recommended to use a secure mounting method, such as soldering or using a mechanical fastener. Additionally, consider using a vibration-dampening material, such as a silicone adhesive, to reduce the impact of vibrations on the component.
• What is the recommended storage condition for the MYMGA5R04RELA5RA?
  The MYMGA5R04RELA5RA should be stored in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is from -40°C to +30°C, and the relative humidity should be below 60%.
