MYRGC075060W31RA - Murata Electronics

Description: Non-Isolated PoL Module DC DC Converter 1 Output 1 ~ 5 V 600mA 3V - 36V Input

Download MYRGC075060W31RA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

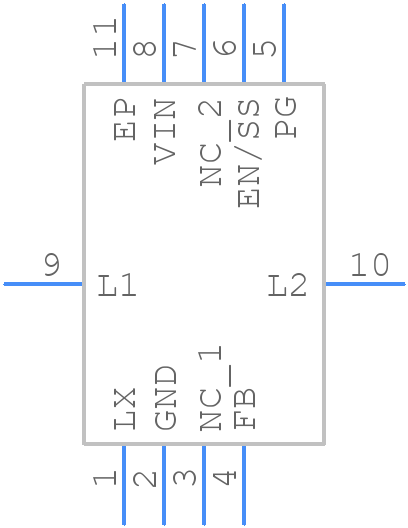

MYRGC075060W31RA - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
MYRGC075060W31RA - Murata Electronics PCB footprint - Other - Other - MYRGC075060W31RA-3
click to zoom
3D Models
MYRGC075060W31RA - Murata Electronics - 3D model - Other - MYRGC075060W31RA-3
click to zoom

MYRGC075060W31RA Details

  • Manufacturer Part Number:

    MYRGC075060W31RA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SMD-10

  • ECCN Code:

    EAR99

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Efficiency (Main Output):

    86%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XQMA-N10

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.6 A

  • Output Voltage-Max:

    5 V

  • Output Voltage-Min:

    1 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QMA

  • Package Equivalence Code:

    MODULE,10LEAD(UNSPEC)

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    OVER CURRENT; THERMAL

  • Seated Height-Max:

    1.7 mm

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Total Power Output-Max:

    7.2 W

  • Trim/Adjustable Output:

    YES

  • Warm-up Time:

    0.033 s

  • Width:

    3 mm

MYRGC075060W31RA Frequently Asked Questions (FAQs)

  • The recommended land pattern for the MYRGC075060W31RA can be found in the Murata Land Pattern Recommendation document, which provides detailed guidelines for PCB layout and footprint design.
  • The MYRGC075060W31RA has a thermal resistance of 30°C/W, and it is recommended to use a thermal pad or heat sink to dissipate heat. The PCB should also be designed with thermal vias and a solid ground plane to help with heat dissipation.
  • The MYRGC075060W31RA has an operating temperature range of -40°C to +125°C, but it is recommended to derate the component's power rating at high temperatures to ensure reliable operation.
  • To ensure the reliability of the MYRGC075060W31RA in high-vibration environments, it is recommended to use a secure mounting method, such as soldering or adhesive, and to follow Murata's guidelines for vibration testing and simulation.
  • The ESR of the MYRGC075060W31RA is not explicitly stated in the datasheet, but it can be estimated to be around 10-20 mΩ based on the component's internal construction and materials.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MYRGC075060W31RA Overview

Use the download button to access the MYRGC075060W31RA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MYRGC, or try a keyword search, such as Power Supply Modules

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
