MYRGM080200C41RA - Murata Electronics

Description: Switching Voltage Regulators 2.7 TO 6V 2A

Download MYRGM080200C41RA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

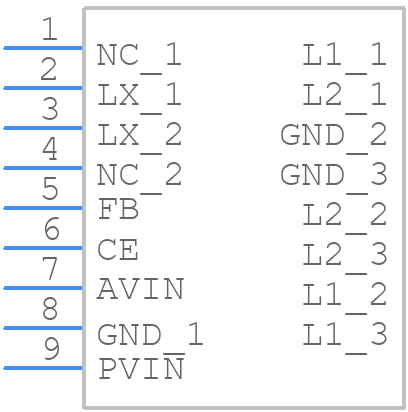

MYRGM080200C41RA - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
MYRGM080200C41RA - Murata Electronics PCB footprint - Other - Other - MYRGM080200C41RA
click to zoom
3D Models
MYRGM080200C41RA - Murata Electronics - 3D model - Other - MYRGM080200C41RA
click to zoom

MYRGM080200C41RA Details

  • Manufacturer Part Number:

    MYRGM080200C41RA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD-11

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2020-06-04

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Additional Feature:

    ALSO HAS PFM CONTROL

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-XQCC-N11

  • Length:

    4.7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    11

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    6 V

  • Output Voltage-Min:

    0.9 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC11,.12X.18(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Seated Height-Max:

    1.35 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2400 kHz

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Width:

    3.1 mm

MYRGM080200C41RA Frequently Asked Questions (FAQs)

  • The recommended land pattern for the MYRGM080200C41RA can be found in the Murata Land Pattern Recommendation document, which provides detailed guidelines for PCB design and layout. It's essential to follow these recommendations to ensure reliable soldering and prevent defects.
  • The MYRGM080200C41RA is a moisture-sensitive device, and it's essential to handle it according to the Moisture Sensitivity Level (MSL) guidelines. Store the components in a dry environment, and follow the recommended baking and soldering procedures to prevent damage.
  • While the datasheet specifies the typical operating temperature range, it's essential to note that the maximum operating temperature range for the MYRGM080200C41RA is -40°C to +125°C. However, it's recommended to derate the component's performance at extreme temperatures to ensure reliability.
  • The MYRGM080200C41RA is designed to withstand moderate vibration levels. However, if your application involves extreme vibration, it's recommended to consult with Murata's technical support team to discuss the component's suitability and potential modifications to the design.
  • The MYRGM080200C41RA meets various regulatory standards, such as RoHS and REACH. However, it's essential to review the component's compliance with your specific application's regulatory requirements, such as automotive or medical standards. Consult with Murata's technical support team or regulatory experts to ensure compliance.
