MYRGP330100W21RA footprint, schematic symbol and 3D model by Murata Electronics

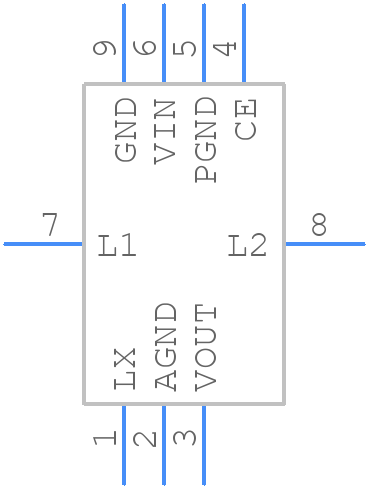

Symbol

click to zoom

PCB Footprints

MYRGP330100W21RA - Murata Electronics PCB footprint - Other - Other - MYRGP330100W21RA

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MYRGP330100W21RA
Part Number MYRGP330100W21RA
Manufacturer Murata Electronics
Pin Count 9
Part Category Power Supply
Package Category Other
Footprint Name Other - MYRGP330100W21RA
Released Date Jan 11, 2021
Last Modified Date Apr 1, 2024 4:04 AM UTC
Pinout / Pin List Click Here (Member Only)

MYRGP330100W21RA Details

Manufacturer Part Number:
MYRGP330100W21RA
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
SMD-8
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Date Of Intro:
2019-11-28
Manufacturer:
Murata Manufacturing Co Ltd
YTEOL:
0
Additional Feature:
ALSO HAS PFM CONTROL
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
VOLTAGE-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
5.5 V
Input Voltage-Min:
2.5 V
Input Voltage-Nom:
5 V
JESD-30 Code:
R-XQCC-N8
Length:
2.5 mm
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
1 A
Output Voltage-Max:
3.366 V
Output Voltage-Min:
3.234 V
Output Voltage-Nom:
3.3 V
Package Body Material:
UNSPECIFIED
Package Code:
QCCN
Package Equivalence Code:
LCC8,.07x.09(UNSPEC)
Package Shape:
RECTANGULAR
Package Style:
CHIP CARRIER
Seated Height-Max:
1.04 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
3000 kHz
Technology:
HYBRID
Terminal Form:
NO LEAD
Terminal Pitch:
0.55 mm
Terminal Position:
QUAD
Width:
2 mm

MYRGP330100W21RA Frequently Asked Questions (FAQs)

Murata recommends a land pattern with a pad size of 3.3mm x 2.5mm, with a non-solder mask defined (NSMD) pad shape, and a solder mask clearance of 0.1mm. The recommended land pattern is available in the Murata documentation or can be obtained by contacting their technical support.
The MYRGP330100W21RA has a high power rating, and thermal management is crucial. Ensure good thermal conductivity by using a thermal pad or via under the component, and consider using a heat sink or thermal interface material (TIM) if necessary. Follow the recommended thermal design guidelines in the Murata documentation or consult with their technical support.
The MYRGP330100W21RA has an operating temperature range of -40°C to +125°C. However, the maximum operating temperature may vary depending on the specific application and environmental conditions. It's recommended to consult with Murata's technical support or refer to the device's reliability report for more information.
The MYRGP330100W21RA is designed to withstand moderate vibration levels. However, for high-vibration environments, it's recommended to consult with Murata's technical support to discuss the specific vibration requirements and ensure the component's reliability. Additional mechanical support or fixation may be necessary to prevent component damage or failure.
The MYRGP330100W21RA meets various safety and regulatory standards, including UL, ENEC, and RoHS. Ensure that your application meets the required standards by consulting with Murata's technical support and reviewing the device's certification documents. Additionally, follow proper design and manufacturing practices to ensure compliance with relevant regulations.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

MYRGP330100W21RA Overview

Use the download button to access the MYRGP330100W21RA schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MYRGP, or try a keyword search, such as Switching Regulator or Controllers
