The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the terminals.
Yes, the N10220-6212PC is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure that the connector is properly secured and that the screw terminals are tightened to the recommended torque to prevent loosening over time.
The N10220-6212PC has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to ensure that the connector is properly sealed and that the cable is also rated for outdoor use to prevent water ingress.
The N10220-6212PC is designed to work with cables of a specific gauge (20-12 AWG). Using a cable of a different gauge may affect the connector's performance and reliability. It's recommended to use the specified gauge to ensure optimal performance.
Yes, the N10220-6212PC is designed to be compatible with other 3M Interconnect products, including cables, backshells, and accessories. However, it's essential to verify compatibility before using the connector with other products to ensure reliable performance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
N10220-6212PC Overview

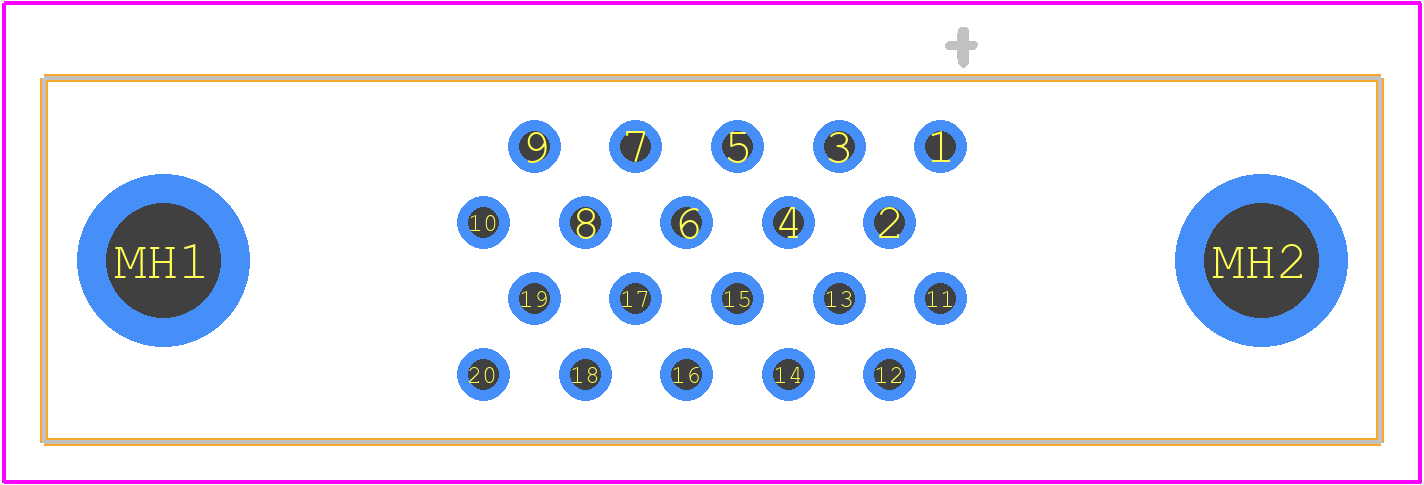

Use the download button to access the N10220-6212PC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like N1022,
or try a keyword search, such as Telecom and Datacom Connectors
